Evaluation boards
|
|
|
Ateme's
evaluation boards are used for various applications in
imaging and telecommunication fields from evaluation to
development stage: Demo-ing, algorithm evaluation,
prototyping, FPGA development, software optimization,...
This range of products enables DSP selection between 'C5509
for portable equipment, 'C6211
for low-cost feature-rich equipment and 'C64x
for high end applications.
Its complete and feature-rich software development environment
is useful to cut down time to market. Moreover, its hardware
flexibility supports extension with all kinds of communication
links via mezzanine boards. |
|
| Ateme
offers various solutions for technical support from hotline to
application engineer assistance, sharing its specific
engineering services in order to reduce development time. |
| Digital
Media Evaluation Kit - DMEK 642 |
 |
-DSP
TMS320DM642
-4 analog video inputs PAL & NTSC
-1
analog video output, PAL & NTSC
-1
analog VGA output
-BT.656
VGA camera (optional)
-1 digital audio/video extension port
-1
analog stereo audio I/O + mic
-RS232/422 interfaces
-Ethernet
Interface
-Host
Port Interface
-HDD
(IDE interface)
-High
speed Extension port
-Stand alone use(PC104 on request)
|
| This
new kit - available in two versions - integrates the TI
DM642 which combines outstanding processing
capabilities with the interfaces needed for the video market -
glueless digital video interfaces at BT.601, BT.656,
SMPTE nn…format.
Find more about the DMEK
642 Features |
|

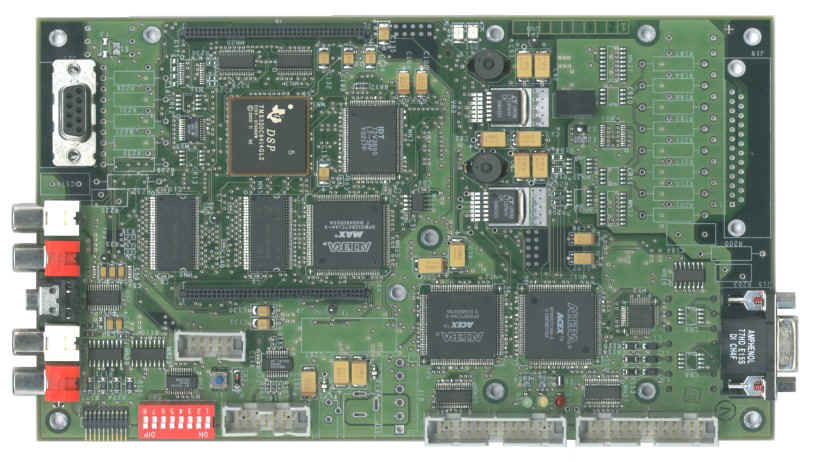

Digital
Media Evaluation Kit - DMEK 6414
|
| This new
board is the entry point for Digital Video on Texas
Instruments DSP with it's BT656 input and output.A analog
to BT656 daugther board provides immediate start with the
board.
Find more about the DMEK 6414 Features.
|
 |
-1
digital video BT656 input
-1 analog video input, PAL & NTSC -On-board VGA camera
-1 digital video BT656 output
-1 analog video output, PAL & NTSC
-1 analog VGA output
-1
analog stereo audio I/O + mic digital audio I/O with McBSP in
I2S
-TI
cross-platform daughter card itf
1 RS232 UART- 1 RS422 McBSP
-Stand
alone use
|
|

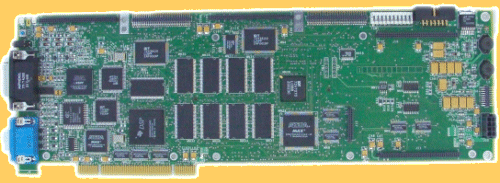

Imaging Evaluation Kit -
IEK C64x
|
| Stand
alone or PCI-based system used for high-end applications in imaging
and telecommunication fields from evaluation to
development stage, using FPGA development and software
optimization on the very last Texas Instruments TMS320C64x
DSP. |
 |
- Stand alone or PCI
use
- 1 composite or SVHS video I/O
- 1 RGB video output
- 1 stereo audio I/O
- 1 DSP TMS320C64x
- TI cross-platform daughter card
- High speed extension ports
- PCI master and slave interface |
 Find
more about the IEK C64x Features |
|
Download
the IEK C64x introduction in PDF version (256 KB) |

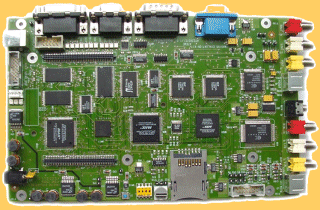

| Imaging
Evaluation Kit - IEK C5509 |
| Stand
alone board dedicated for portable equipment. It
includes an FPGA, the Texas Instruments TMS320C55009 DSP and
can support Texas Instruments cross-platform daughter card. |
 |
- 1 composite or
SVHS video I/O
- 1 RGB video output
- 1 stereo audio I/O
- Flash memory card interface
- USB port
- RS232 and RS422 serial link
- General TTL and analog I/Os
- 1 DSP TMS320C5509
- 8 MB Flash
- 8 MB SDRAM
- TI cross-platform daughter card
- Single power supply |
|
Find
more about the IEK C5509 Features |
|
Download
the IEK
C5509 introduction in PDF version (256 KB) |

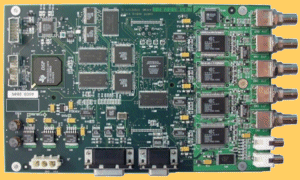

| Imaging
Evaluation Kit - IEK C6x11 |
| Stand
alone system used for video and audio applications
using FPGA development and the Texas Instruments TMS320C6x11
DSP: fixed point 'C6211 or floating point 'C6711 |
 |
-
4 composite video inputs
- 1 composite video output
- 1 analog audio I/O
- 1 DSP TMS320C6x11:
('C6211 or 'C6711)
- 1 FPGA 50 Kgates
- Serial and parallel links
- General TTL I/O port
- Single power supply |
|
Find
more about the IEK C6211 Features |
|
Download
the IEK
C6211 datasheet in PDF version (172 KB) |
|
|
