HSMC Prototyping board
HSMC Prototyping board

HSMC Prototype board

  • 4-Layer PCB with matrix of 0.1" pitch spaced holes
  • Convenient +3.3V, +5V and GND marked access points throughout matrix
  • Fan-out of HSMC connector pins
  • Fused +12V and +3.3V supplies for added safety
  • High quality, 4-layer, FR4 PCB with plated thru holes

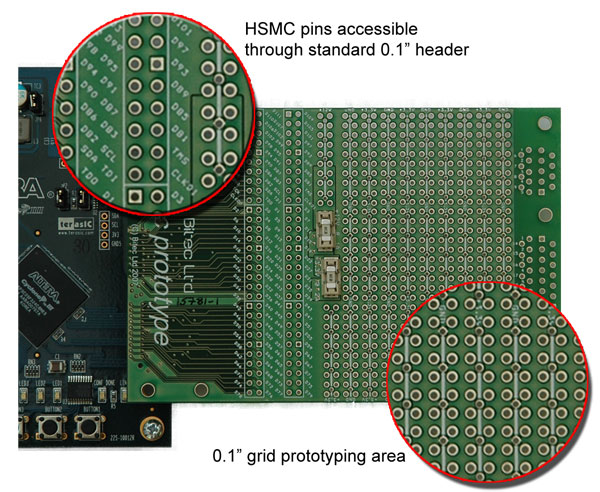

The Bitec HSMC prototype board provides an elegant and economical solution for prototyping circuits and testing them together with the latest Altera FPGA development kits. The board provides access to the complete set of HSMC signals via a footprint of standard 0.1" pitch headers. The HSMC power pins are accessed via fuses for added security. The main prototype matrix comprises a 0.1" grid interleaved with +3.3V and GND access points. Footprints for commonly used 25-way and 9-way d-type connectors are included on the board.
