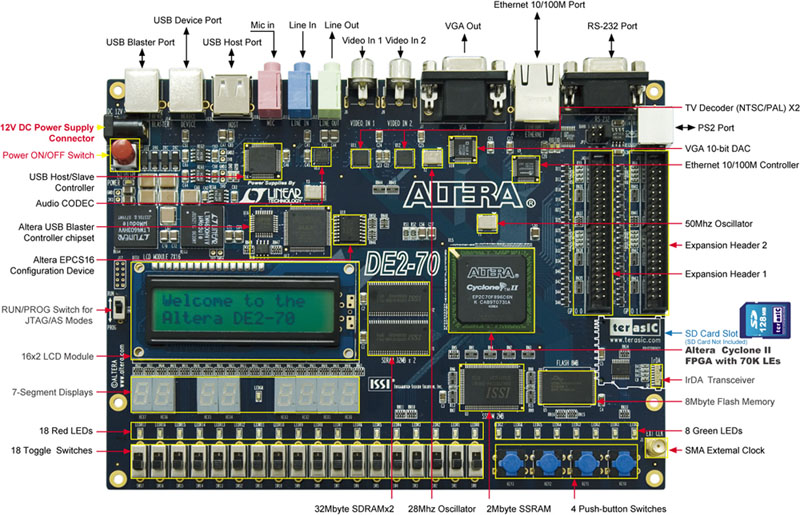

USB
Blaster (on board) for programming and user API
control; |
|
|
both JTAG and Active
Serial (AS) programming modes are supported |
|
|
2-Mbyte SSRAM |
|
|
Two 32-Mbyte SDRAM
|
|
|
8-Mbyte Flash memory |
|
|
SD Card socket |
|
|
4 pushbutton
switches |
|
|
18 toggle switches |
|
|
18 red user LEDs |
|
|
9 green user LEDs |
|
|
50-Mhz oscillator
and 28.63-Mhz oscillator for clock sources |
|
|
24-bit CD-quality
audio CODEC with line-in, line-out, and
microphone-in jacks |
|
|
VGA DAC (10-bit
high-speed triple DACs) with VGA-out connector |
|
|
2 TV Decoder
(NTSC/PAL) and TV-in connector |
|
|
10/100 Ethernet
Controller with a connector |
|
|
USB Host/Slave
Controller with USB type A and type B connectors |
|
|
RS-232 transceiver
and 9-pin connector |
|
|
PS/2 mouse/keyboard
connector |
|
|
IrDA transceiver |
|
|
1 SMA connector |
|
|
Two 40-pin Expansion
Headers with diode protection |
|
|
Size：153*203 mm
|
