Digital Video Engine-2(DVE-2) for Stand-alone

Description：

  • Digital Video Engine-2是為多媒體數位信號處理發展所設計，以 Philips Nexperia (previously called TriMedia) 200MHz處理器構成的CPU核心，使用者買來直接就可以用，而不必做任何修改。

  • 包含Flash memory 'DiskOnChip'用來儲存程式和資料，為一個獨立處理的板子。

  • 硬體架構上也包含TCP/IP通訊連接阜，影像、聲音可透過DVE-2's Ethernet  interface來壓縮傳送，使發展成為WEB Cam、 Video Server...等。

  • 它同時也包含 TriMedia 軟體發展環境(SDE)，此包羅廣泛的軟體使多媒體的應用程式得以在 TriMedia 架構下，利用 C／C++ 完全流暢的發展與最佳化。

  • 適合應用在影像、聲音、通訊多媒體數位信號處理發展系統上。
Feature：

Digital Video Engine

　

　

　

　

　

　

　

  • real time video, audio and telecoms I/O

  • four video, audio and control interface channels

  • 32 bit VLIW processor with integrated I/O ‘off the shelf’ video, audio and data functions

  • flash ‘DiskOnChip’ system

  • standard C/C++ programming with extra libraries

  • Ethernet bus for data transfer across networks

  • The Nexperia (TriMedia) processor is programmed and debugged using the Philips NDK tools

  • download TriMedia board data sheet

　
Specification：

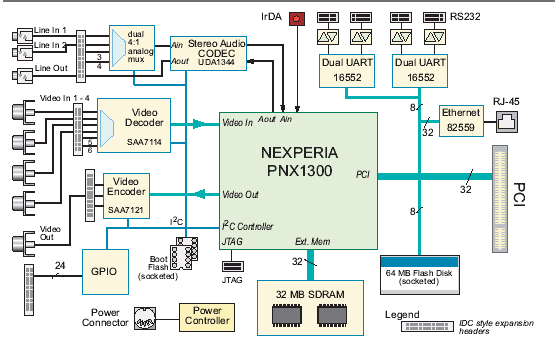

  • Video, audio and data I/O

  1. The DVE-2 has four sets of ports for video camera, video display, audio, and RS232 camera control. These connect to the TM-1300 chip’s integrated peripherals for concurrent real time video, audio and telecoms I/O and are readily accessible from software programs in C or C++.

  2. The 10/100 Ethernet bus provides for data transfer across networks in a distributed system.

  3. The I/O peripherals are supported by library software functions which make programming I/O, and especially multitasking I/O, easier.

  • Flash ‘DiskOnChip’ subsystem

  1. The DVE-2 has an optional flash memory ‘DiskOnChip’ subsystem: this permits the DVE-2 to store video and audio data locally for a time: forinstance to store high-resolution images on an alarm condition or to cover breaks in transmission.

  2. The TM-1300 processor is the ‘host’ processor for the disk operating system.

  3. The flash disk can be configured so that the program is loaded from flash disk at power-on, and executed. This facilitates development and porting from traditional desktop PC systems.
