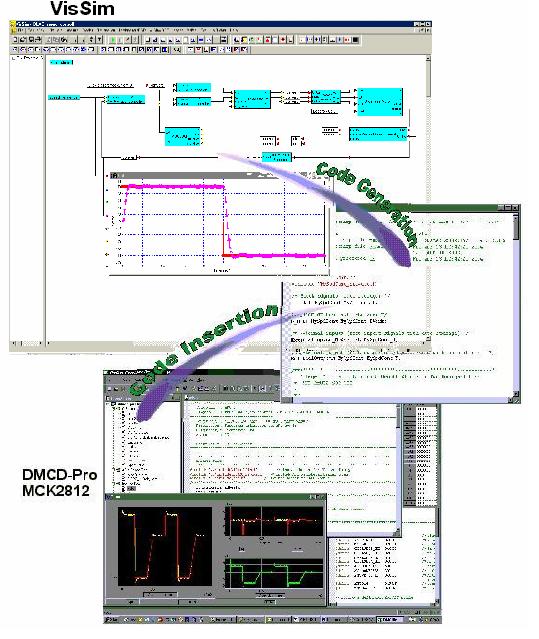

| 完整數位馬達控制發展平台，支援
VisSim
發展環境 |
|
| 簡介 |
|
MCK2812和MSK2812是一個完整馬達開發和評估的套裝軟體。強力支援TMS320F2812
DSP 控制器，這套軟體完成於理想環境設計、開發和數位馬達控制的應用上。MCK2812
kit 是完整支援電力電子模組和無刷式馬達的
DSP 開發平台給已經擁有電力電子模組和無刷式馬達的使用者，並且要開發他們的馬達控制軟體應用。可以很快的發展和測試馬達測試的演算法，MCK2812
DSP在TMS320F2812上可以達到150
MIPS強大的計算動力，同時處理16
PWN和16
A/D轉換。MCK2812和
MSK2812 套件可以經由電腦上的RS232埠下載。
|
|
|
|
| 特色 |
| MCK2812 Kit C Pro-MS(BL) |
- MSK2812 board with
TMS320F2812 running at 150 MHz, 128-kWords 0-wait
state external RAM,
2x12-bit accuracy D/A outputs, RS-232, CAN-bus and
JTAG interfaces
- PM50, 3-phase
inverter power module
- Brushless motor
equipped with Hall sensors and 500-line encoder
- MCWIN2812 Pro
software:
- Real-time serial
communication monitor
- PROCEV28x,
Processor evaluation software (with ASM source
code)
-
DMCD28x-Pro,
Digital Motor Control Developer software
- Brushless Motor
Control Demos: trapezoidal and sinusoidal modes
- DMCode-VS(BL),
Source code library for position and speed control
of a brushless motor (sinusoidal mode), including a
complete VisSim model of the motion system, and the
basic structure for DSP implementation
- TI software tools:
C-Compiler, Assembler and Linker (TMS320C28x)
- User's manuals
詳細資料
|
|
|
| MCK2812
Kit C Pro-MS(IM) |
- MSK2812 board with
TMS320F2812 running at 150 MHz, 128-kWords 0-wait
state external RAM,
2x12-bit accuracy D/A outputs, RS-232, CAN-bus and
JTAG interfaces
-
ACPM750E,
3-phase GBT power module (750 W, 4 A)
-
Induction motor,
230 VAC, 370 W, with encoder
- MCWIN2812 Pro
software:
- Real-time serial
communication monitor
- PROCEV28x,
Processor evaluation software (with ASM source
code)
-
DMCD28x-Pro,
Digital Motor Control Developer software
- DMCode-VS(IM),
source code library for position and speed control
of an induction motor (vector control mode),
including a complete VisSim model of the motion
system, and the basic structure for DSP
implementation
- TI software tools:
C-Compiler, Assembler and Linker (TMS320C28x)
- User's manuals
詳細資料
|
|
|
|
|
|
