| DMCD
- Digital Motor Control Developer(DMCD-Lite & DMCD-Pro) |
|
| 完整程式發展與開發環境,包含編譯-除錯-分析 |
Windows
IDE motion development & debugging software
- Fully integrated DSP
software development for the TMS320F24x/F28x
DSP controllers.
- Incorporated Debugger
- Watch Windows
- Memory and I/O registers
view/modify
- Integrated source code
editor with powerful programming options
- Project Management System
- Tracing Module (DMCD-Pro
only)
- Reference Generator
Module (DMCD-Pro only)
|
|

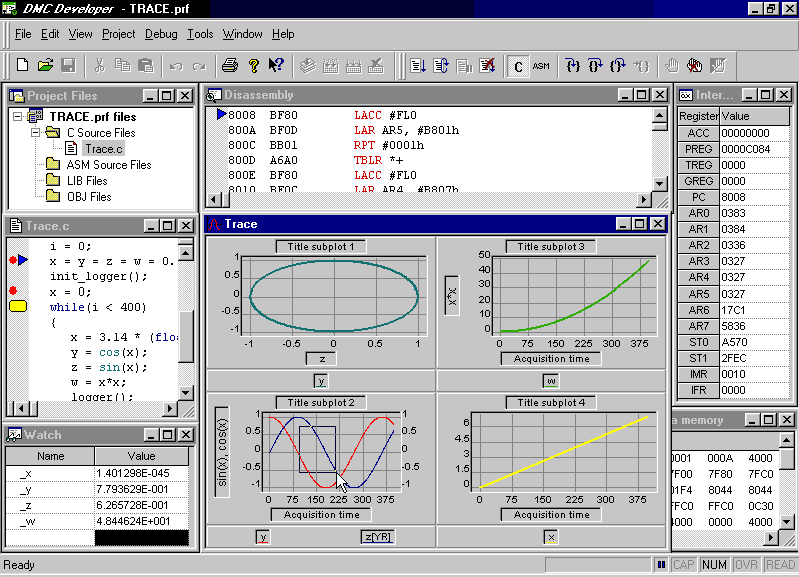

Full
Size |

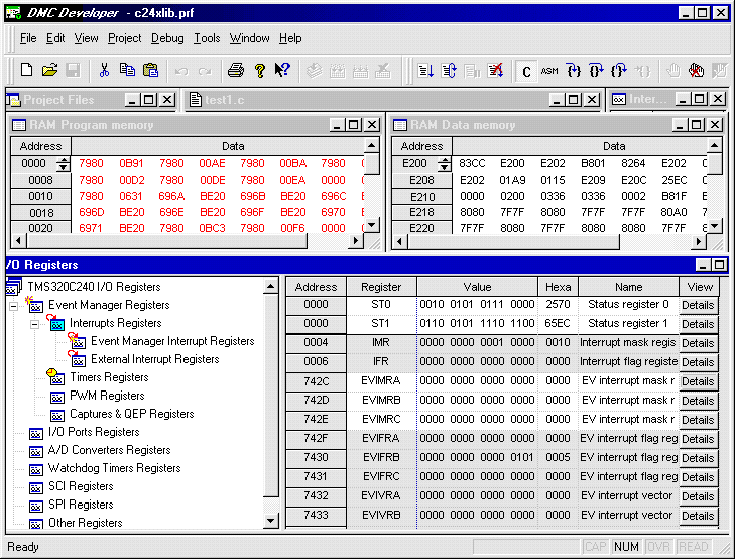

Full
Size |
Fully
integrated DSP software development environment
- Its familiar environment
and DSP-specific functionality enables a short learning
curve, to get you started quickly
|
Incorporated
Debugger
- Allows you to quickly
observe/edit global variables during the debugging process
- You can set breakpoints,
single stepping, stopping and continuing of the
current program.
|
Watch
Windows
- You can quickly
observe/edit global variables during the debugging process
- You can view/edit both data
and program memory contents of the DSP target board
- The Disassembly window
contains the disassembled instructions along with symbolic
information needed for effective debugging
- You can view/edit I/O and
internal registers of the DSP processor
|
|
Integrated
source code editor with powerful programming options
- Each file has its own
window and you can edit several views of the same file
- Advanced search and replace
mechanism
- Syntax coloring for C and
ASM (TI's assembly syntax is also supported)
- Bookmarks management
|
Project
Management System
- The system provides an
effective way of quickly visualizing, accessing, and
manipulating all the project files and their dependencies
- The result is a concise,
highly organized project management system that promotes a
very efficient development process.
Tracing module
- The system provides an
advanced graphical tool for the analysis and evaluation of
motion control applications
- The program variables may
be stored during the real-time execution of the motion, and
then up-loaded and visualized in the graphical environment
Plug-ins
- This module allows you to
use external module functions into your DSP applications.
Basically, you may select one or more external modules from
a list containing all available external modules.
- If the reference generator
plug-in is included in your application, you may define the
motion reference at a high level, in DMC Developer, then
download and execute it automatically on the DSP board.
|
