DESCRIPTION
UART
(Universal Asynchronous Receiver Transmitter)
串列埠適用於TI的DSK和EVM DSP開發平台並同時提供四個相容於DTE (Data
Terminal Equipment)和DCE (Data Communication
Equipment)的RS-232-C串列傳輸介面。並擁有適合UART的開發軟體。這些擴充卡適合用在TI
DSP
和
EVM
開發系統的
TI MS320
交會平台擴充卡上。
SPEED
各種不同型號區分
| 型號 |
區別 |
| RS232-2 |
2
UART-to-RS-232-C ports, 1 as DTE with male DB-9,
1 as DCE with female DB-9. |
| RS232-2-S |
2
UART-to-RS-232-C ports, 1 as DTE with male
DB-9, 1 as DCE with female DB-9, 可堆疊上去. |
| RS232-4 |
4
UART-to-RS-232-C ports, 2 as DTE with male
DB-9, 2 as DCE each with female DB-9. |
| RS232-4-S |
4
UART-to-RS-232-C ports, 2 as DTE with male
DB-9, 2 as DCE each with female DB-9, 可堆疊上去.. |
系統架構圖
|
BLOCK
DIAGRAMS OF THE STANDARD RS-232-C
SERIAL COMMUNICATION PORT
DAUGHTER CARDS
|
 |
|

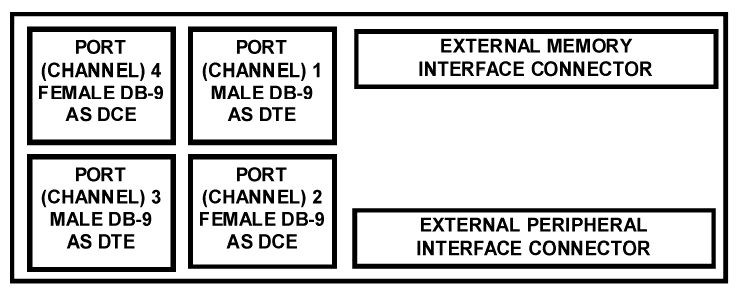

Above is a block diagram of the standard
RS-232-C Serial Communication Port cards
showing the location of each of the four
ports, (labelled "CHANNELS" on the
cards) the gender of the 9-pin, DB-9
connector, and the DTE/DCE
configuration. Each channel has a UART
driving the interface. Channels 1 and 2
are included in the 2-port cards and channels
1, 2, 3, and 4 are included in the 4-port
cards. Note that at the time of order,
the DTE/DCE configuration, and the interface
of any channel can be specified differently.
Note also that a DTE always has a male
connector and a DCE always has a female
connector.
Channel 2 is included in the 1-port card and
wired as a DTE with a male connector.
The hardware UART is removed allowing a
software UART to be used instead,
|
| |
RS-232-C
BLOCK DIAGRAMS
Block diagrams of each of the RS-232-C interface
cards are shown below.
 |
|

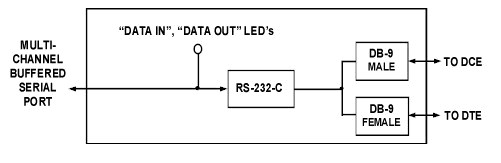

Block diagram of the Model DSPG-IC-1-232, (no
hardware UART, software UART required), single
channel, RS-232-C Serial
Communication
This is the only card that does not have a
hardware UART. It is used when a
software UART is implemented in order to
minimize hardware in the final product.
This card has an RS-232-C interface wired as a
"DTE" (Data Terminal Equipment), and
a male 9-pin, DB-9 connector labeled "TO
DCE", unless specified otherwise at the
time of order. UART software is not
included but can be downloaded from the TI
website by clicking HERE.
|
| |
 |
|

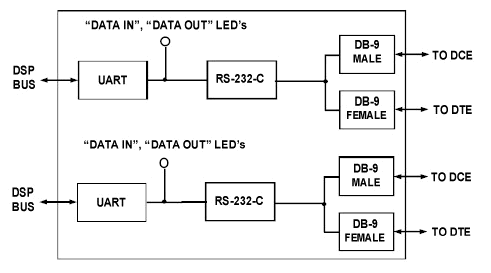

Block diagram of the Model DSPG-IC-2-U232,
2-channel, UART-to- RS-232-C This
card is shipped with one RS-232-C interface in
wired as a "DCE" (Data Communication
Equipment), with a female, 9-pin, DB-9
connector labeled "TO DTE", and
one RS-232-C interface wired a " DTE"
(Data Terminal Equipment), with a male, 9-pin,
DB-9 connector labeled "TO DCE".
(This standard configuration can be
changed upon request at the time of order).
|
| |
 |
|

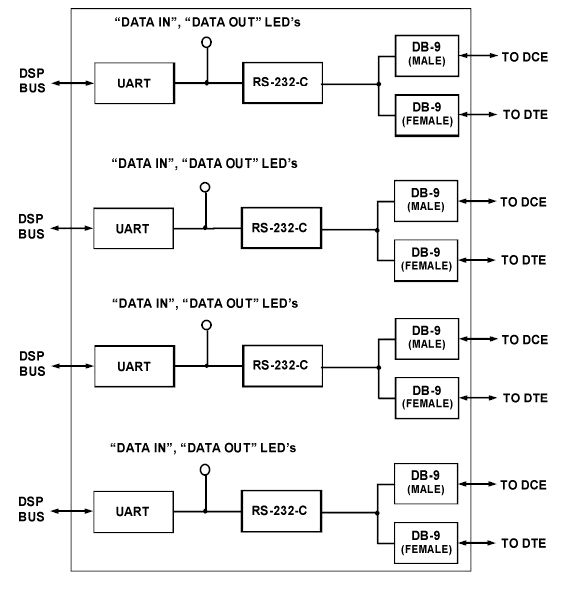

Block diagram of the Model DSPG-IC-4-U232,
4-channel, UART-to- RS-232-C This
card is shipped with the RS-232-C interface in
Channels 1 and 3 wired as a "DCE"
(Data Communication Equipment), with female,
9-pin, DB-9 connectors each labeled "TO
DTE", and the RS-232-C interface in
Channels 2 and 4 wired as a " DTE"
(Data Terminal Equipment), with male, 9-pin,
DB-9 connectors labeled "TO DCE".
(This standard configuration can be
changed upon request at the time of order).
|
|
