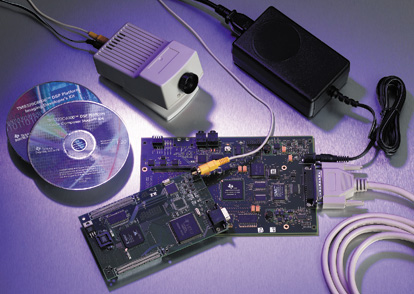

The new TMS320C6000TM DSP Imaging
Developer's Kit (IDK) is a complete and easy-to-use
development environment for rapid prototyping of advanced video
and imaging systems based on the TMS320C6000 DSP Platform. The
IDK provides real-time programmable performance to support video
and imaging industry trends towards high bandwidth streaming
video and real-time image processing. The IDK brings together
all of the hardware and software elements needed into one kit to
speed new products to market.
Features:
The Imaging Developer's Kit includes
complete hardware and software tools for US North America--part
number TMDX320026711 Europe--part number TMDX320026711E
Product
includes:
Hardware
DSP board:
-150 MHz code-compatible TMS320C6711 DSP
-16 MB on-board memory
-TI data converter and power management solutions
Capture/display daughter-board:
-Composite Video Input (NTSC or PAL)
-RGB Monitor Output (565 VGA or SVGA)
NTSC/PAL compatible camera
Software
Development tools software:
-Code Composer StudioTM IDE
-DSP/BIOSTM RTOS
-Compiler, assembler, linker
Application Demos (eXpressDSP compliant):
-H.263 encoder+decoder
-Multi-channel H.263
-JPEG encoder+decoder
-Wavelet, edge detection, convolution...
Foundation software:
-Chip support library
-Imaging source library
-DMA memory streaming utilities
The TMS320C62xTM DSP image
and video processing library is a downloadable collection of 22
high-level optimized imaging modules for C6000 DSP platform.
