SIGNALWARE ORS-xxx

Peripheral Card	Data Bits	A/D x Channels	A/D Max. Sample Rate	D/A x Channels	D/A Max. Sample Rate	Digital I/O	Top View	Bottom View

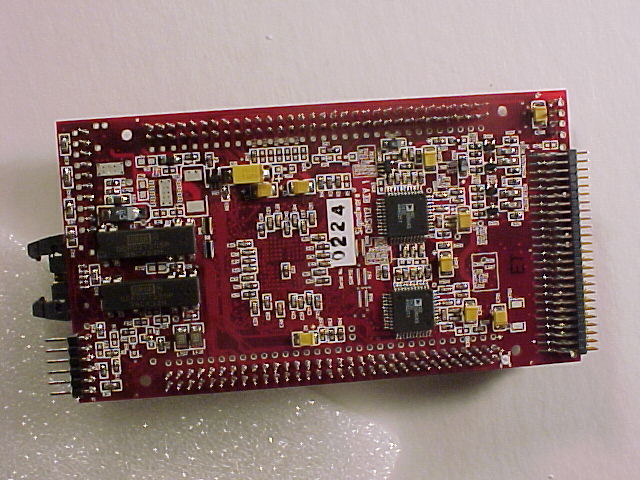

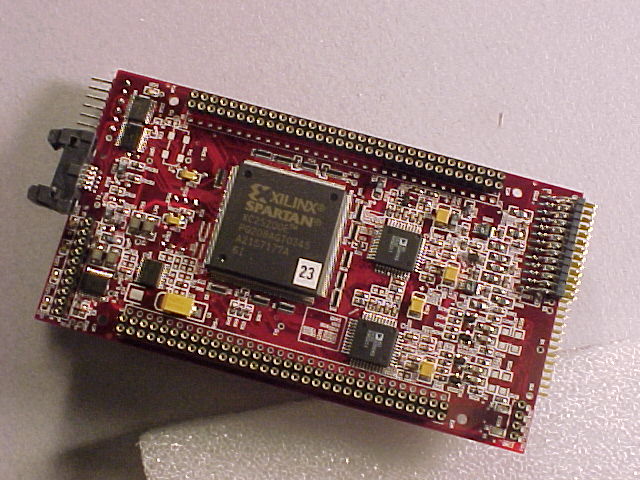

ORS-112 Data Sheet	12	2 x 1	20 MSPS	2 x 2s	1 MSPS	4I, 4O
ORS-112 Data Sheet	16	4 x 1	5 MSPS	2 x 2s	1 MSPS	4I, 4O

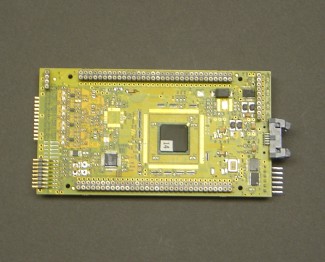

ORS-114 Data Sheet	12	2 x 2s	40 MSPS	2 x 2s	40 MSPS	4I, 4O
	12	1 x 2s	65 MSPS	1 x 2s	100 MSPS
	14	2 x 2s	40 MSPS	2 x 2s	40 MSPS
	14	1 x 2s	65 MSPS	1 x 2s	100 MSPS

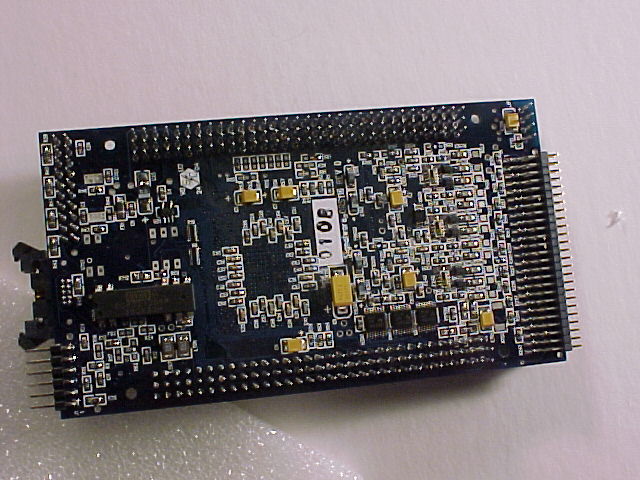

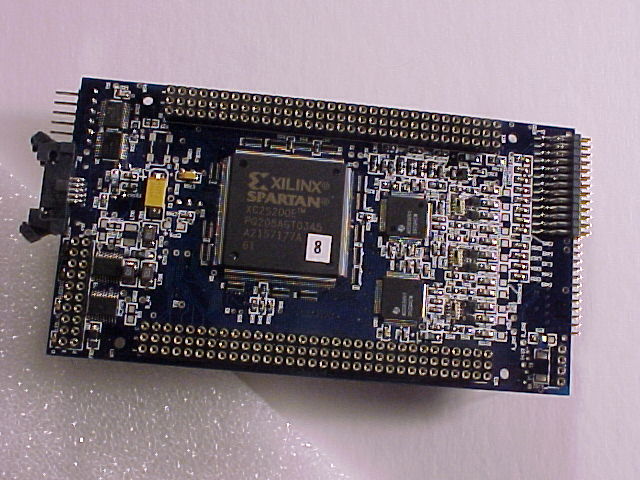

ORS-116 Data Sheet	16	2 x 6s	250 KSPS	3 x 4s	250 KSPS	4I, 4O

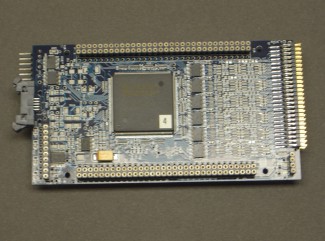

ORS-119 Data Sheet	Available with LVTTL, LVDS, opto-isolated inputs and outputs in groups of 8					8 to 96 I/O
