Terasic 130萬像素相機轉板
The 1.3Mega Pixel Digital Camera Development Package provides everything you need to develop a
1.3Mega Pixel Digital Camera on the Altera DE2.

The kit contains hardware design (in Verilog) and software to load the picture taken into the PC and save it as BMP file. The Getting Started User Guide shows users how to exercise the digital camera functions.

  • Altera DE2 Board with TRDB_DC2 1.3Mega Pixel Daughter card
  • Complete reference design with source code in Verilog
  • A User Manual with Live Demo examples
  • Support exposure time controlling - users can adjust the exposure according to the light of the surrounding area
  • Support motion capture mode
  • Software allows users to upload the picture captured into PC and save the picture into bitmap format for viewing.
  • Equipped with iMagic C1M1A compact camera module
  • Provide users entire reference design (Frame Grabber, high-performance multi-port SDRAM frame buffer, image processing IPs)
  • Support both Altera DE2 board and Terasic TREX C1 Boards

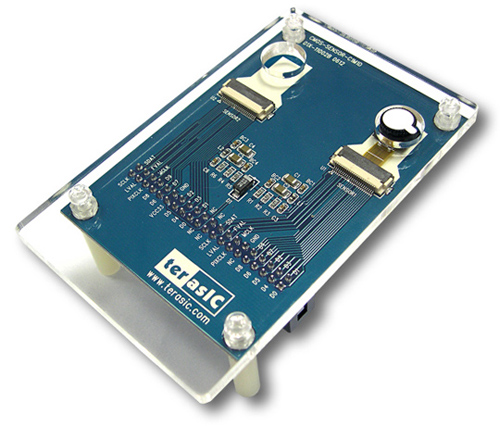

TRDB_DC2 130萬像素相機模組 :

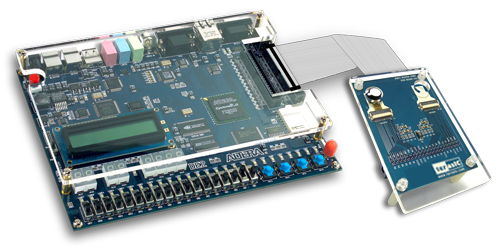

完整套件包含一最新DE2平台及130萬像素相機模組 :
