TI DaVinci EVM Prototyping Daughtercard
Product Description

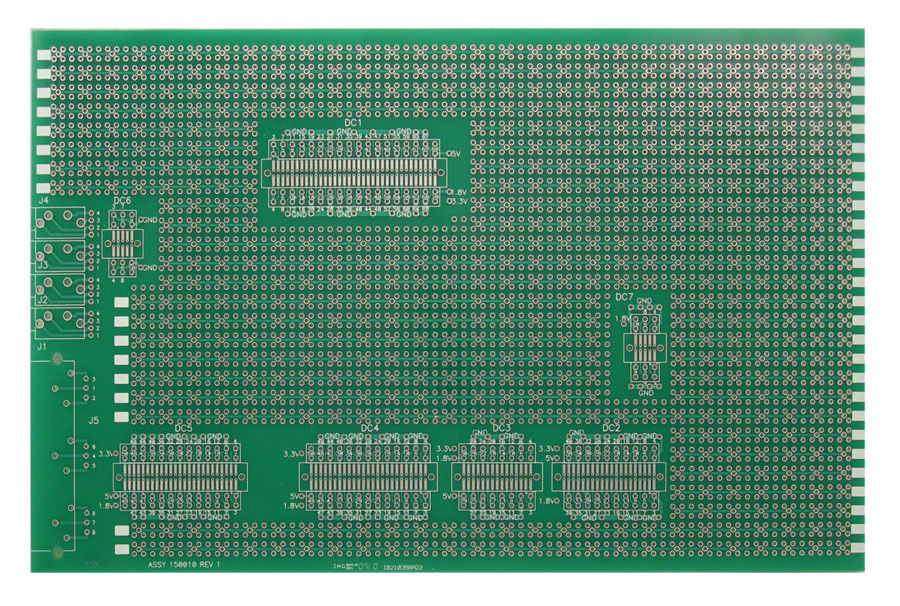

The model LR-DAVPROTO1 is a general purpose prototyping board designed to mate with the Texas Instruments' TMDSEVM6446 DaVinci development board. The board is 9"x5.75", providing a generous area for custom prototyping work. An array of holes (0.035" diameter) on 0.1" spacing will accomodate thru-hole devices, as well as SMT adapters from companies such as Aries, Ironwood, etc. Between the gridded holes are buss traces with holes every half-inch or so. These holes fall in between the gridded holes, so as not to disrupt the continuous grid of 0.1" spaced holes.

At the ends of the busses are white writing pads, which can be used for buss labeling. A fine-point Sharpie pen is included with each prototype board.
