The
TMS320DM6467 Digital Video Evaluation Module (DVEVM) enables
developers to start immediate evaluation of DaVinci™ processors
and begin building digital video applications such as
surveillance digital video servers/recorders, media gateways,
multi-point control units digital media adaptors, set-top boxes
and many other High-Definition video applications.

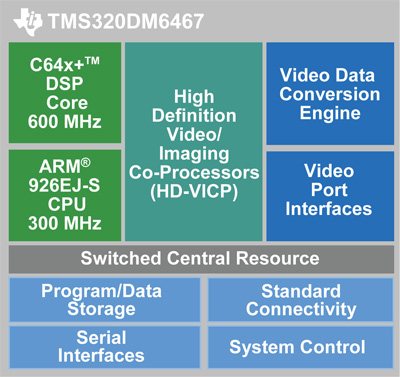

The DM6467 DVEVM allows developers
to write production-ready application code for the ARM and
provides access to the 64x+ DSP and HD-Video/Imaging
Co-Processor core using DaVinci APIs to begin immediate
application development for the TMS320DM6467 digital media
processor.
The Digital Video Software
Production Bundle (DVSPB) MontaVista Linux companion product is
recommended for production.
DM6467 DVEVM includes
the following components:
- TMS320DM6467 DaVinci™
processor-based development board
- IR remote
- Development board
reference materials (gerber, schematics, BOM)
- 40GB Hard Disk Drive
- On-board Ethernet
controller with application notes and schematics
- Video capture of
High-Definition YPbPr, NTSC or PAL signals via component
video, composite video or S-video input
- High-Definition YPbPr,
NTSC or PAL output via Component or composite video output
- Other features such as
microphone in, headphone out, line in and line out, UART, USB
2.0 HS, Flash memory and JTAG for test
- TI eXpressDSP™
Linux-based DVSDK
- MontaVista Pro
Demonstration Tools
- DM6467 Getting Started
Guide and Hardware Technical Reference
TI’s eXpressDSP Linux-based DVSDK
allows system integrators to incorporate discrete software
modules and combine them into a single executable output for the
systems, avoiding months of tedious manual integration. By
making it easy to create custom bundles of codecs for specific
applications, the configuration kit makes it simple to reuse
code. The DVSDK includes:
- TI’s HD MPEG-2 Decoder
and H.264 Encoder/Decoder and AAC and G.711 Audio codec*
- Custom codecs that
comply with TI’s eXpressDSP Digital Media (xDM) algorithm
standard
- Multimedia APIs and
Codec Engine Frameworks
- Demonstration version of
MontaVista Linux Pro 4.0
- Drivers for UART, I2C,
SPI, EDMA, ATA, USB Host/Gadget, Video Ports, etc.
- OSS Audio (ASP), GPIO,
PWM, WDTIM
- U-boot loader
* Evaluation codecs are included
on the DVD and HDD that accompanies the DVEVM.
