首頁 DSP應用 影像處理 TI DSP DM368

TI DaVinci TMS320DM368視訊處理器技術結合雙核心與硬體影像壓縮處理機制,可達HD的高效能網路視訊監控處理。直接符合客戶的終端設計需求。


Main Features:

  • TI TMS320DM368 processor
    High quality HD image

  • Dual stream UVC / UAC

  • 720p30 H.264 + QVGA MJPEG compression streams

  • Scalability up to 1080p30 with HW/SW compatible

  • Built-in advanced video processing: noise filtering, image

  • stabilization, face detection/tracking

  • 128MB DDRII and 16MB NOR Flash

  • Small form factor PCB (1" x 3")


  • Low electronics bill of materials

  • Short development cycle with:
      . Complete and optimized schematics
      . Gerber files

      . Free Linux application source code

  • Application layer available for complete customization

  • Video/Audio Codec configurable to meet specific system needs

  • Standard USB driver

  • Highly Integrated image sensor module

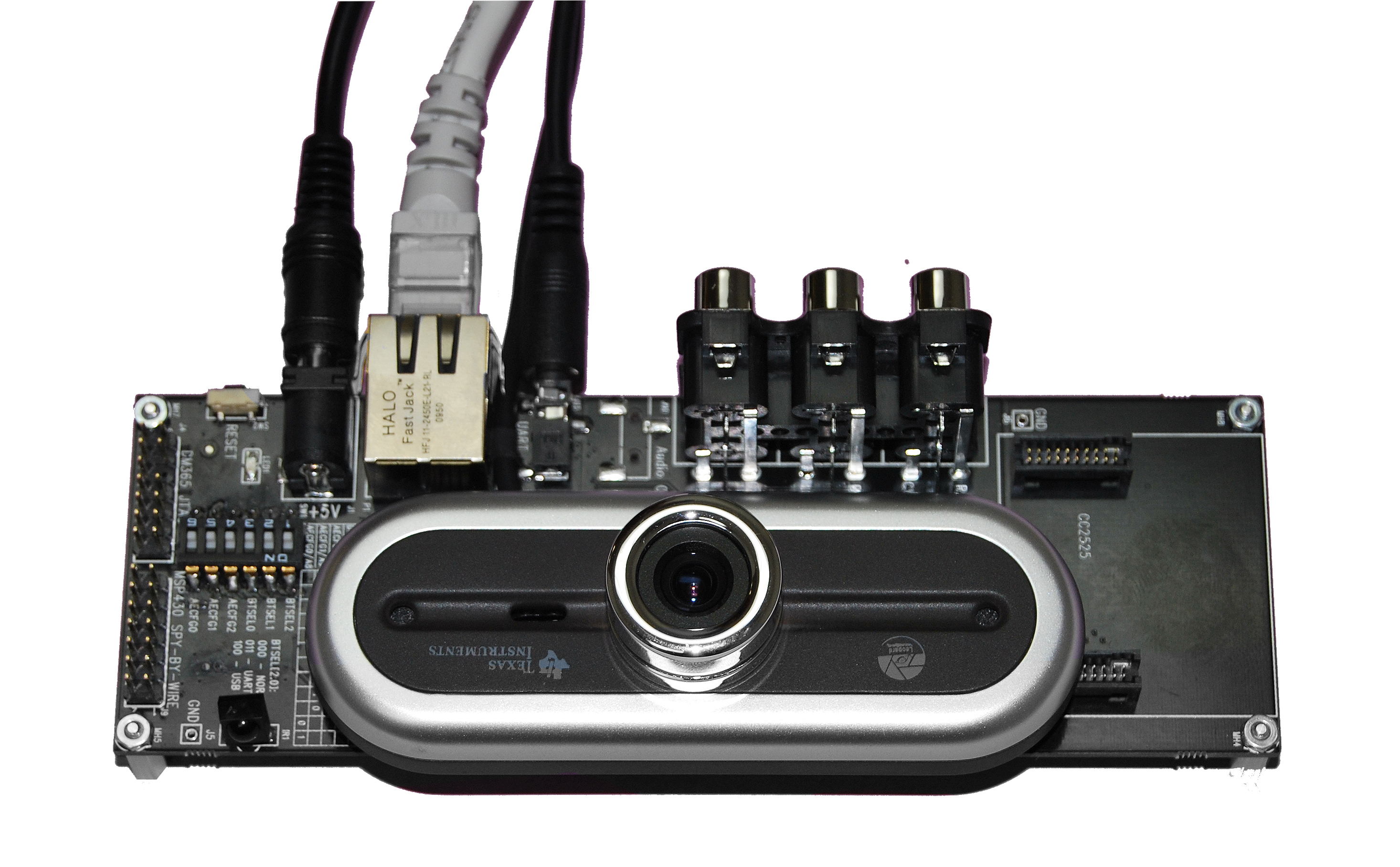

  • Rich peripherals on communication board: JTAG, Serial, Network, Video and Audio

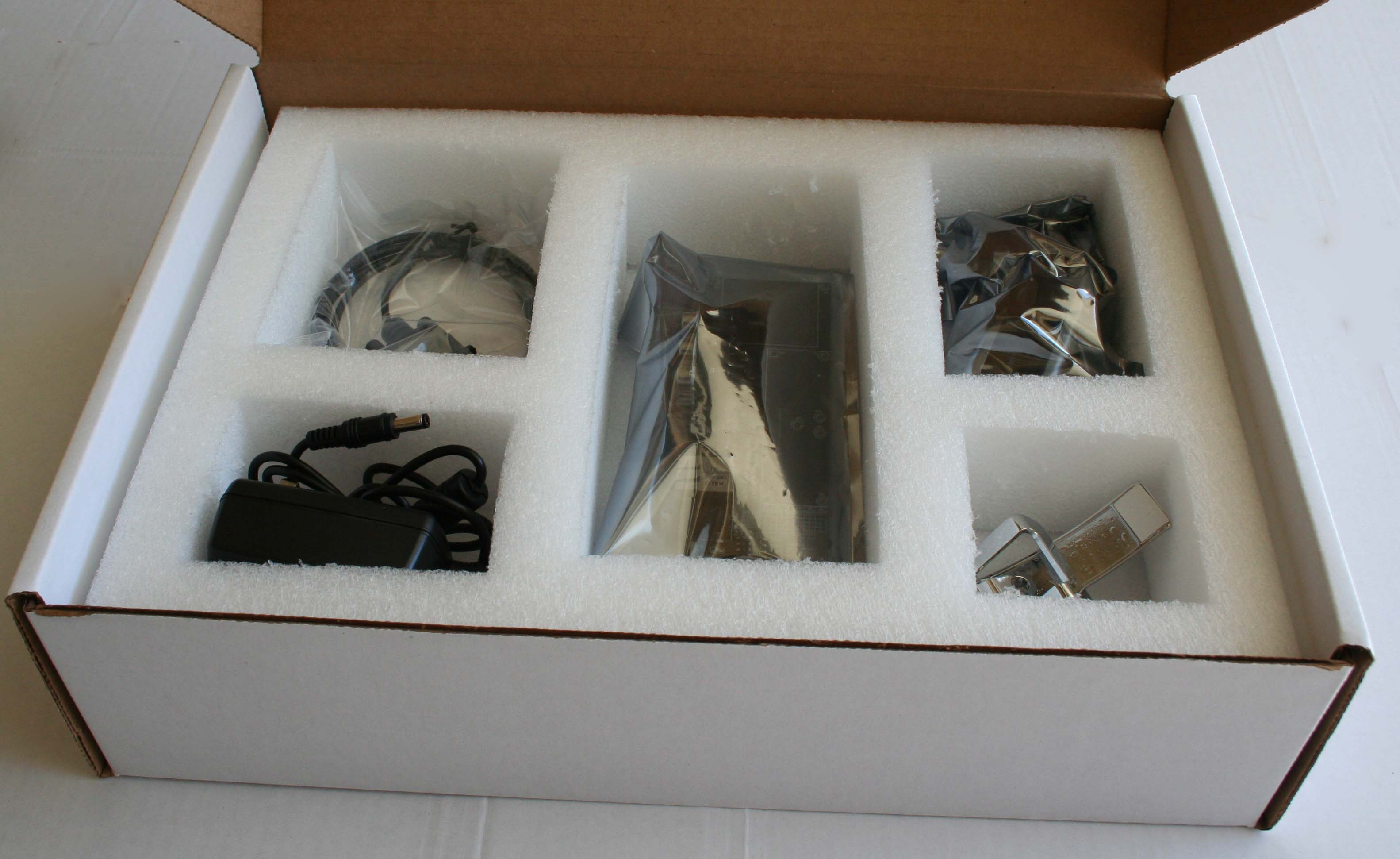

The kit includes:

  • Webcam Enclosure Assembly

  • DM36x Main Board

  • OV9712 CMOS sensor module, (Optional: Aptina 5M MT9P031 sensor module)

  • 2 Microphones

  • USB Cable

  • Communication board for debugging

  • L-Bracket

  • Serial Adapter Cable

  • +5VDC Power Adapter
