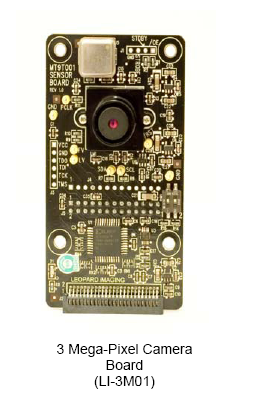

3M HD Camera Board

LI-3M01照相板是一個高解析度數位相機板。他內含有QXGA 1/2-inch CMOS active-pixel 格式數位圖片感應器外加一個active imaging pixel array of 2048Hx1536V Aptina Imager MT9T001LI-3M01相機板能產生非常清晰清楚的數位圖片並且它是具有把連續視訊跟單一框架都捕捉的能力,這使它成為對於包括數位技術相機、數位視訊相機和監視相機等消費者電子產業應用的發展工具最佳選擇。



  • 1/2-Inch 3-Megapixel CMOS High Definition Digital Imager
  • Active imaging pixels: 2048H x 1536V
  • Pixel Size: 3.2μm x 3.2μm
  • 10-bit Digital Output with Line and Frame Synchronization
  • Max Data rate: 48 Megapixel Per Second
  • Support for QXGA, UXGA, SXGA, XGA and VGA format
  • Dynamic Range: 61dB
  • Simple two-wire serial interface
  • Snapshot Triggering Input
  • Global Shutter Control Input
  • Superior low-light performance
  • High frame rate
  • Low noise CMOS imaging technology that achieves CCD

image quality:

  • Direct interface to Aptina Development board
  • Direct interface to TI DM6446 Evaluation Module
  • Interface to TI DM355 Evaluation Module through the DM355 Adapter Board (LI-355A)
  • Interface to TI OMAP35x Evaluation Module through Mistral Daughter Card by a 26-pin ribbon cable
  • Flexible I/O voltage: 1.8V to 3.3V
  • High resolution lens
  • Free Linux driver for DM6446 and DM355


  • Digital Still Camera Development
  • Digital Video Camera Development
  • Digital PC Camera Development
  • High Definition Surveillance System Development

Interface with:

  • Aptina Demo2 Kit
