EBWT11-A WT11 Bluetooth Evaluation Board with integrated antenna

  • Class 1, Bluetooth 2.0+EDR compatible WT11 module
  • Unregulated power supply input form 5V to 9V
  • RS-232 serial interface, USB interface
  • SPI for upgrading the firmware and parameters
  • Reset and DSR buttons
  • 2,5mm audio jacks for speaker and microphone
  • 16 pin I/O interface
  • Package Contains:
  • -1 Evaluation Board
  • -Power Adapter
  • -Serial Cable
  • -integrated antenna
 Product Details
Bluegiga's EBWT11-A Evaluation Board is ideal for evaluation the range and performance features of the WT11 Bluetooth Module from Bluegiga Technologies. The WT11 Evaluation Board comes with 1 WT11 Evaluation Board, Power Adapter and Serial Cable.

WT11 Bluetooth Module from Bluegiga:
WT11 is a next-generation, class 1, Bluetooth?2.0+EDR (Enhanced Data Rate) module. It introduces three times faster data rates compared to existing Bluetooth?1.2 modules even with lower power consumption! WT11 is highly integrated and sophisticated Bluetooth?module, containing all the necessary elements from Bluetooth?radio to antenna and a fully implemented protocol stack. Therefore WT11 provides an ideal solution for developers who want to integrate Bluetooth?wireless technology in to their design with limited knowledge of Bluetooth?and RF technologies. WT11 module combined with Bluegiga's complete development, testing and verification service offering and excellent developer support, OEMs and designers ensure that their products reach the market rapidly and cost-effectively in relation to time and resources. Bluegiga has in-house knowledge of both software and hardware offering customers a single point of contact to all Bluetooth?related issues.


JB-20 Standard Kit

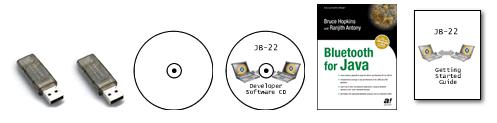

The Standard Kit contains the following components:

  • (2) USB Bluetooth 2.0 +EDR dongles
  • (1) Bluetooth Hardware CD for Windows
  • (1) JB-20 Developer Software CD
    • JSR-82 development software with javax.bluetooth and javax.obex libraries
    • example code
  • (1) copy of the ebook, "Bluetooth for Java"
  • (1) copy of the JB-20 Getting Started Guide

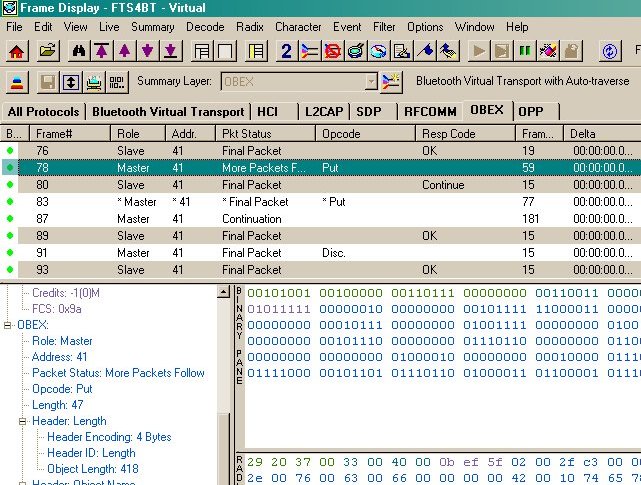

  • For a limited time, all JB-20 customers are eligible for a FREE trial of Frontline's FTS4BT Bluetooth Air Sniffer tool (with free Bluetooth hardware)

System Requirements:

  • one or more PCs with the following operating systems :
    • Windows 98SE
    • Windows 2000
    • Windows XP
  • one available USB port
  • JDK 1.4 or greater
