首頁 微控制器 主機板 > ES437

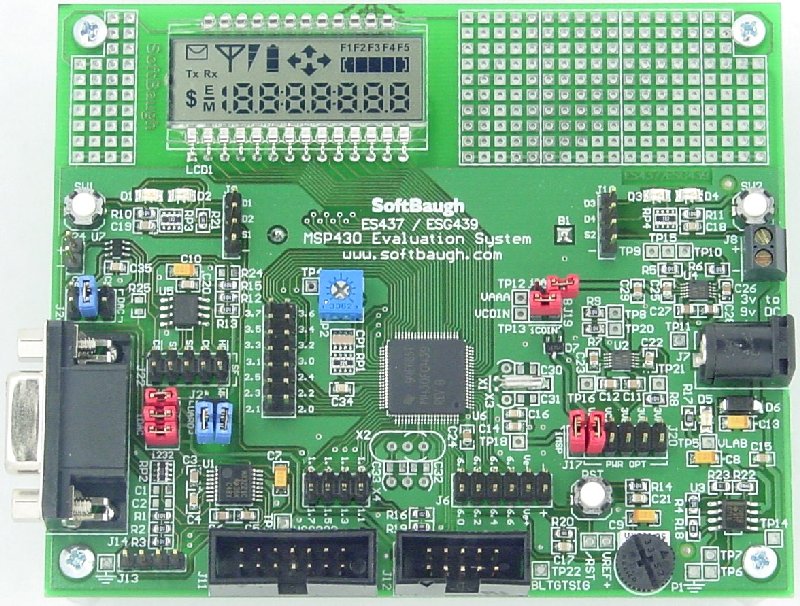

ES437 套件可以讓你輕易的驗証 TI MSP430F437 處理器的特性,並提供精細的液晶顯示模組。
  • MSP430F437 flash processor
  • Our custom SBLCDA4 LCD
  • Texas Instruments RS232 interface using the MAX3221
  • Adjustable TPS7201 LDO for benchtop use
  • One-cell power supply based on the TPS60310 (3.3v from one AA or AAA battery)
  • 4 green user LEDs
  • CR2032 coin cell supply and 3.3v capacitive charge pump
  • JTAG header, perfect for use with our FETP or USBP (not included)
  • Bootload header, perfect for use with our UBSL or BLMSPF (not included)
  • 2 user switches
  • Every MSP port pin exposed at IDC headers
  • Large prototyping area
  • Roomy 2Mbit SST serial flash for data logging applications
  • DAC7512 12-bit low-power serial DAC
  • 32kHz watch crystal
