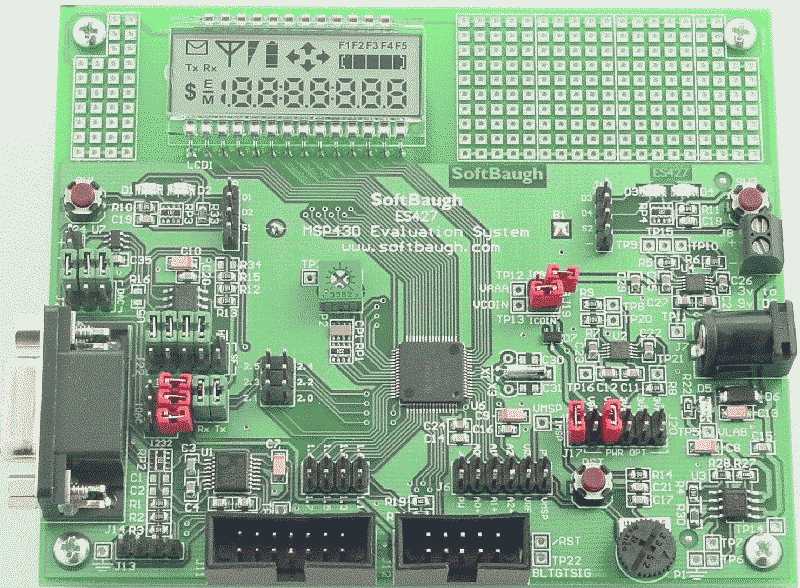

| ES427主板 |
|
 |
ES427
套件可以讓你輕易的驗証 TI
MSP430F427
處理器的特性，並提供精細的液晶顯示模組。 |
|
| 簡介： |
- MSP430F427 flash processor
- Texas Instruments RS232
interface using the MAX3221
- Adjustable TPS7201 LDO for
benchtop use
- Single AAA 3.3v supply using
the TPS60310
- CR2032 coin cell supply
using the TPS60212
- JTAG header, perfect for use
with our FETP or USBP (not included)
- Bootload header, perfect for
use with our UBSL or BLMSPF (not included)
- 4 user LEDs
- 2 user switches
- Roomy 2Mbit SST serial flash
for data logging applications
- 32kHz watch crystal
|
|
|
|
|
