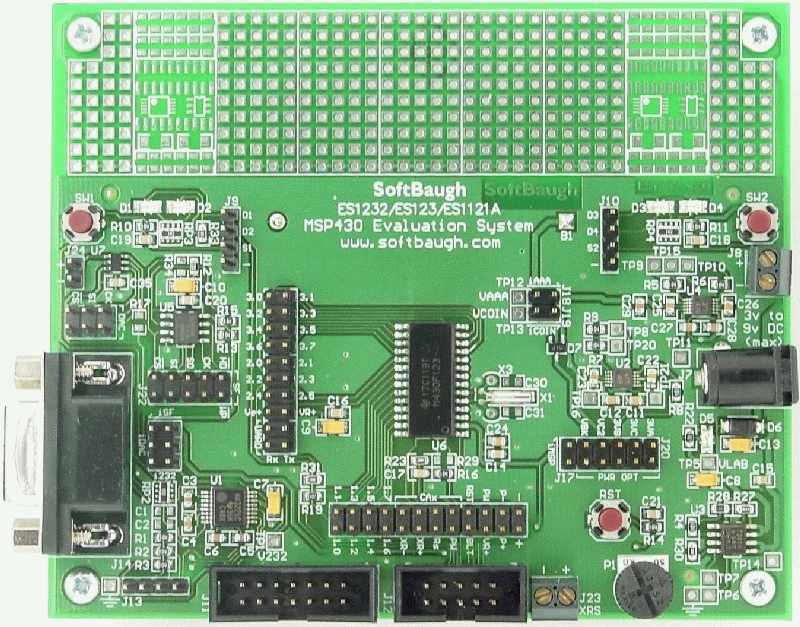

| ES123主板 |
|
 |
ES123
套件可以讓你輕易的驗証 TI
MSP430F123
處理器的特性 |
|
| 簡介： |
- MSP430F123 flash processor
- Texas Instruments RS232
interface using the MAX3221
- Adjustable TPS7201 LDO for
benchtop use
- One-cell power supply based
on the TPS60310 (3.3v from one AA or AAA battery)
- CR2032 coin cell supply and
optional 3.3v capacitive charge pump
- JTAG header, perfect for use
with our FETP or USBP (not included)
- Bootload header, perfect for
use with our UBSL or BLMSPF (not included)
- 4 green user LEDs
- 2 user switches
- Every MSP port pin exposed
at IDC headers
- Large prototyping area
- Roomy 2Mbit SST serial flash
for data logging applications
- DAC7512 12-bit low-power
serial DAC
- 32kHz watch crystal
|
|
|
|
|
