Xilinx FPGA多功能周邊實驗套件(提供中文實驗教材)

       ICT-FPGA-01是一個多功能周邊FPGA實驗套件,包含主板Xilinx XC3S500E和擴充實驗模組,包含有16 LEDs、7-Segment Display、16 Buttons、8 DIP Switches、16x2 Character LCD和PS2 Keyboard,並提供中文實驗教材讓您方便與學習。





The ICT FPGA_01 consist of a FPGA motherboard, and a peripherals daughter board with a translation board between two boards.

The motherboard provides a powerful and highly advanced self-contained development platform for designs targeting a 500K gates Spartan 3E FPGA from Xilinx.

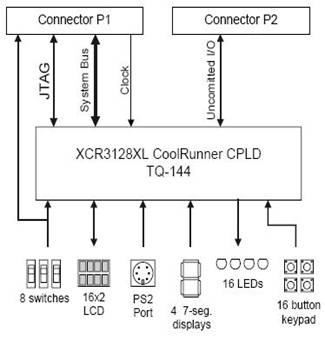

The daughter board provides an assortment of frequently used digital I/O devices, many of which are controlled by an on-board Xilinx XC3128 CPLD. The CPLD provides a bus interface to simplify communications with system boards.





The daughter board includes peripherals



The Spartan 3E motherboard features include



v

Spartan-3E(XC3S500E-4FG320C),CoolRunner™-II (XC2C64A-5VQ44C),and Platform Flash (XCF04S-VO20C)



v

50 MHz crystal clock oscillator

v 128 Mbit Parallel Flash, 16Mbit SPI Flash, 64MByte DDR SDRAM

v

Ethernet 10/100 Phy

v

JTAG USB download

v

Two 9-pin RS-232 Serial Port,

v

PS/2- style mouse/keyboard port

v

rotary encoder with push button

v

Four Slide Switches,



v

A XC3128 CPLD for I/O control



v

Eight Individual LED Outputs

v

A four digit seven-segment LED display



v

16 individual LEDs of various colors



v Four Momentary-Contact Push Buttons

v

A 16-button keypad


v A 16x2 character LCD

v

8 slide switches


v DB15HD VGA

v

A PS2 mouse/keyboard port



v

An on board 5VDC regulator



Reference Examples as follows



v

16 LEDs

v

7-Segment Display





v

16 Buttons

v

8 DIP Switches




v

16x2 Character LCD




v

PS2 Keyboard port






Peripherals drivers above RTL Source Code
