DMCode - S(IM) plug-in for DMCD-Pro

DMCode - S(IM)完整包含了一般感應馬達速度控制的原始碼 ,其中依照下列模式:

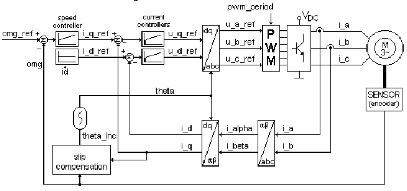

  • Vector control (IMVC)

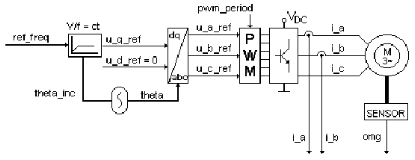

  • V/f mode (IMVF)

此外,對IMVCIMVF的控制模式有完整的原始碼應用。IMVC是利用向量的方式控制,用轉子的磁場位置來判斷,而IMVF是利用固定比例的V/f技術來得到最大的轉矩。這些應用都是架構於 DMCD-Pro 的平台上,也可以利用C語言和組合語言來發展。其中IMVCIMVF依初學和進階而有不同的應用:

  • At beginner's level, these applications may be used in order to become acquainted with a digital motion control application by evaluating the effect of modifying the controller parameters or of different speed reference shapes.

  • At an advanced level, the user may add or replace in any of these applications certain blocks, like controllers and/or the reference generator functions, with his/her own algorithms. Thus, the user will be able to focus on the design of new control algorithms (position control, sensorless, adaptive, etc.)

PMSM Scheme

BLDC Scheme


這是一個進階套件,購買此套件前必需有:DSP board + ACPM750 + induction motor + DMCD-Pro+TI tools (C-Compiler, assembler and Linker).

Donload Leaflet
