Hi-Speed USB(480Mb/s) Emulator

• All USB 2.0 Specifications

• low speed(1.5Mb/s), full speed(12Mb/s)

• Hi-Speed(480Mb/s)

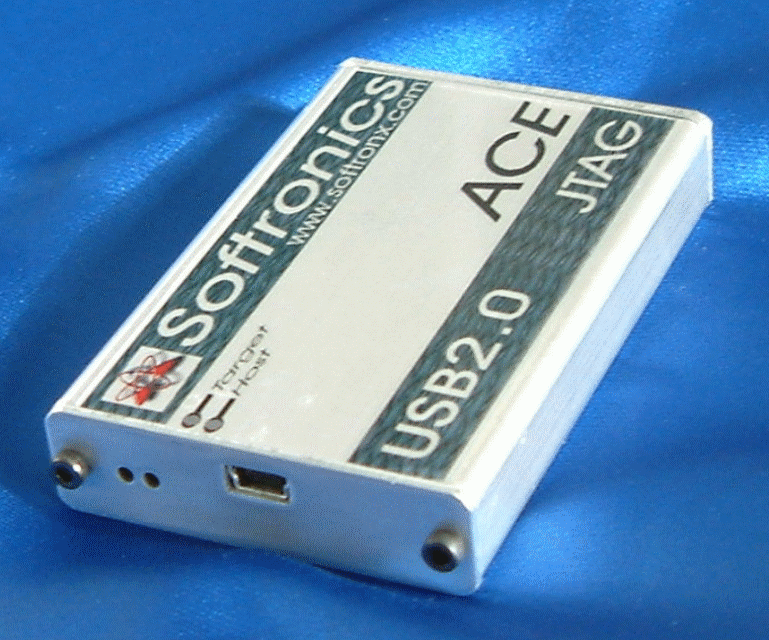

Key features of the ACE include:

• Rugged Anodized Al(non conductive)
• Compact design (~15x50x80mm)
• USB PnP support (no config utils reqd)
• USB bus powered (no externals reqd)
• TI DSPs & ARM processors - all now!
• C54xx, C55xx, C62xx, C67xx, C64xx,
• OMAP (all now), ARM7, ARM9,
• C2xxx, C27xx, C28xx (CCS)
• Variable TCLK 20 - 6 Mhz
• 1.0V to 5.0V procs (auto-detect )

1.Up to 40X Faster than full speed

• Code Composer Studio,RTDX,DspBios etc.,

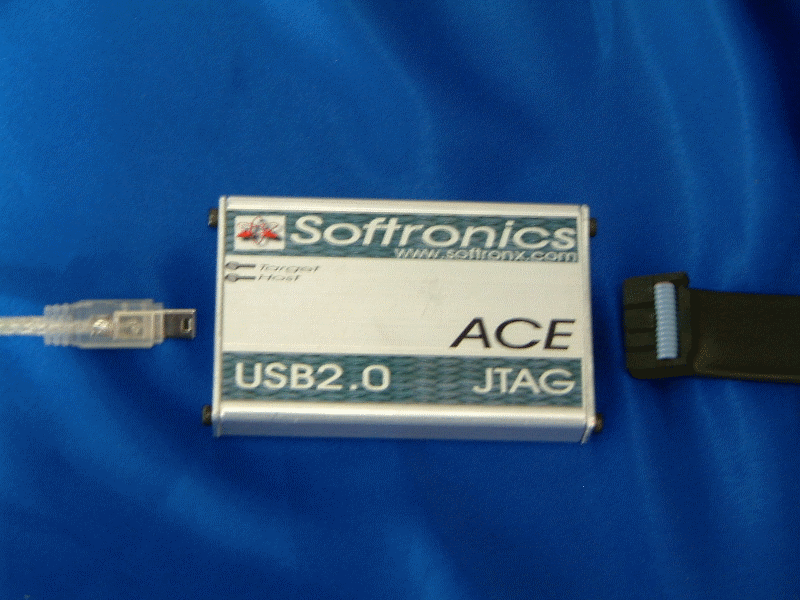

•  easily attached/replaced
•  Cable Length 3m

Status LEDs

• USB & JTAG status LEDs
