首頁 DSP應用 Emulators > PCI JTAG

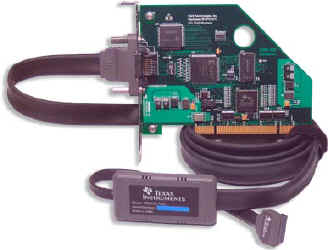

        Blackhawk™ PCI JTAG Emulator 是一個高效能的 PCI 介面的 JTAG 模擬器,支援德州儀器的 TMS320, TMS470 (ARM) OMAP 系列,此產品提供 Windows® 2000/XP 驅動程式,並相容所有版本的 Code Composer Code Composer Studio Blackhawk 也提供獨立的 .DLL 驅動程式,保証可以和現有及未來的 DSP 處理器相容。

Features :

  • Fast program downloads

  • Full Code Composer Studio™ Compatibility
    -Works with Code Composer v4.1x (VC33)

  • Flexible 5 1/2 foot high-speed micro coax cable

  • Auto-sensing low I/O voltage support

  • Remote Ethernet Client Application

  • Windows® 2000, XP Drivers

  • Free technical support and web downloads

System Requirements :

  • PC running Windows 2000/XP

  • Code Composer or Code Composer Studio IDE

  • Vacant PCI slot

  • CD-ROM drive for driver installation

  • Target hardware with standard JTAG header

Application Areas :

       Audio, Automotive, Broadband Solutions, Digital Controls, Imaging & Video, Military, Optical Networking, Telephony, Wireless Communications


   • TI DSP platforms: C6000, C5000, C2000, OMAP, VC33
   • Compatible Operating Systems:
Windows® 2000, XP
