JTAG pin converter

各式腳位轉接器:

下列表格可供您對照所需求的PIN轉接頭，依據模擬器PIN的數目以及主板PIN的數目來選擇合適的PIN轉接頭。

　

Emulator

Connection

Target

Connection

Pin

Converter
14-pin TI 20-pin cTI 14e_TI-20t_cTI
14-pin TI 60-pin TI (trace) 14e_TI-60t_TI

20-pin cTI 14-pin TI 20e_cTI-14t_TI
20-pin cTI 20-pin ARM 20e_cTI-20t_ARM
20-pin cTI 60-pin TI (trace) 20e_cTI-60t_TI

60-pin TI (trace) 14-pin TI 60e_TI-14t_TI
60-pin TI (trace) 60-pin TI (trace) 60e_TI-60t_TI (pin saver)

型號簡寫之描述:

以下敘述了每種接頭的命名方式，其閱讀順序為自左至右。

       ##e_typeE-##t_typeT

  • ## 為pin的數目 (14, 20, 60, etc.)
  • e 代表與模擬器連接(emulator connection)
  • t 代表與主板連接(target connection)
  • typeE 描述模擬器連接型態 (TI, cTI, ARM, etc)
  • typeT 描述主板連接型態(TI, cTI, ARM, etc.)

符號"-"分隔了兩端的連接(emulator and target). The absence of a notation as _typeE or _typeT in either emulator or target connection type, assumes that the emulator or target is a TI device or compatible (i.e. “_TI”).

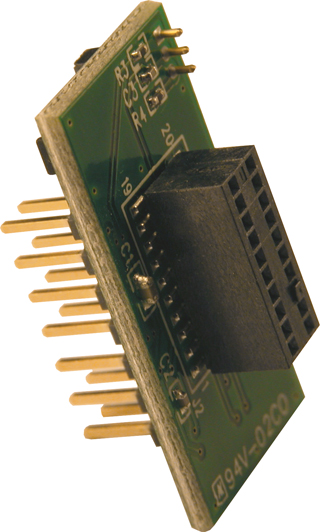

BH-14e_TI-20t_cTI

Part No.:

BH-14e_TI-20t_cTI

　

Desc.:

Converts the standard 2x7 14-pin JTAG connector found on most XDS510 emulators to the 20-pin compact TI (cTI) target header.

　

Emulator Connector:

TI 14-pin JTAG - 2x7 header (0.100”spacing)

　

Target Connector:

TI cTI JTAG - 2x10 socket

(0.050 x 0.100”spacing)

　
JTAG Adaptive Clocking Kit for OMAP ™
[Large Image]

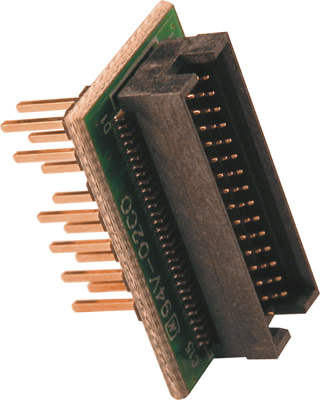

BH-14e_TI-60t_TI

Part No.:

BH-14e_TI-60t_TI

　

Desc.:

Converts the standard 2x7 14-pin JTAG connector found on most XDS510 emulators to the 60-pin high-density XDS560 Trace header.

　

Emulator Connector:

TI 14-pin JTAG - 2x7 header  (0.100”spacing)

　

Target Connector:

TI 60-pin Emulation – quad row terminal (0.050” spacing)

SAMTEC: TOLC-115-012-S-Q-P

　
JTAG Adaptive Clocking Kit for OMAP ™
[Large Image]

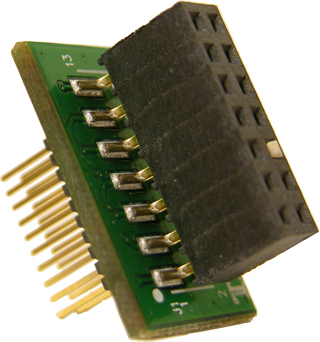

BH-20e_TI-14t_TI

Part No.:

BH-20e_cTI-14t_TI

　

Desc.:

Converts an emulator's 20-pin Compact TI (cTI) header to the standard 2x7 14-pin target header.

　

Emulator Connector:

TI cTI JTAG - 2x10 header

(0.050 x 0.100”spacing)

　

Target Connector:

TI 14-pin JTAG - 2x7 socket  (0.100”spacing)

　
JTAG Adaptive Clocking Kit for OMAP ™
[Large Image]

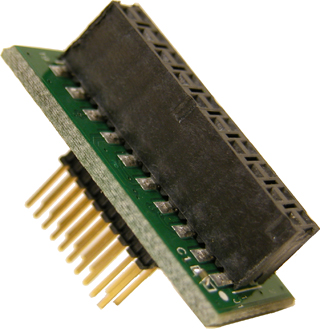

BH-20e_cTI-20t_ARM

Part No.:

BH-20e_cTI-20t_ARM

　

Desc.:

Converts an emulator's 20-pin Compact TI (cTI) header to the 20-pin ARM JTAG header.

　

Emulator Connector:

TI cTI JTAG - 2x10 header

(0.050 x 0.100”spacing)

　

Target Connector:

ARM Multi-ICE - 2x10 socket (0.100”spacing)

　
JTAG Adaptive Clocking Kit for OMAP ™
[Large Image]

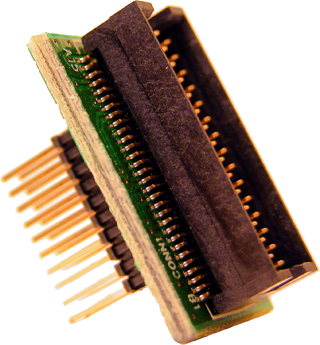

BH-20e_cTI-60t_TI

Part No.::

BH-20e_cTI-60t_TI

　

Desc.:

Converts an emulator's 20-pin Compact TI (cTI) header to the 60-pin high-density XDS560 Trace header.

　

Emulator Connector:

TI cTI JTAG - 2x10 header

(0.050 x 0.100”spacing)

　

Target Connector:

TI 60-pin Emulation – quad row terminal (0.050” spacing)

SAMTEC: TOLC-115-012-S-Q-P

　
JTAG Adaptive Clocking Kit for OMAP ™
[Large Image]

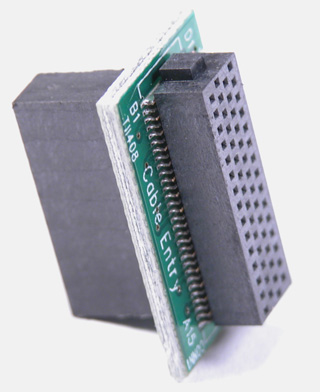

BH-60e_TI-14t_TI

Part No.::

BH-60e_TI-14t_TI

　

Desc.:

Converts the 60-pin high-density XDS560 Trace Module header to a standard 2x7 14-pin target header.

　

Emulator Connector:

TI 60-pin Emulation – quad row socket(0.050” spacing)

SAMTEC: SOLC-115-02-S-Q-P

　

Target Connector:

TI 14-pin JTAG - 2x7 socket  (0.100”spacing)

　

[Large Image]

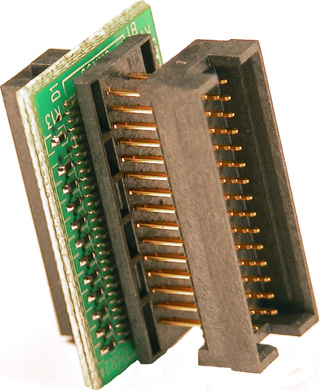

BH-60e_TI-60t_TI

Part No.::

BH-60e_TI-60t_TI

　

Desc.:

Pin saver to protect trace module's 60-pin high-density XDS560 Trace header.

　

Emulator Connector:

TI 60-pin Emulation – quad row socket (0.050” spacing)

SAMTEC: SOLC-115-02-S-Q-P

　

Target Connector:

TI 60-pin Emulation – quad row terminal (0.050” spacing)

SAMTEC: TOLC-115-012-S-Q-P

　

[Large Image]
腳位及其信號之定義:

For reference, the following tables describe each connection's signal to pin arrangement.

Standard 14 pin
 † signal active low

　

　

20 pin ARM multi-ice
 † signal active low

20 pin cTI (Compact TI)
 † signal active low

　

　

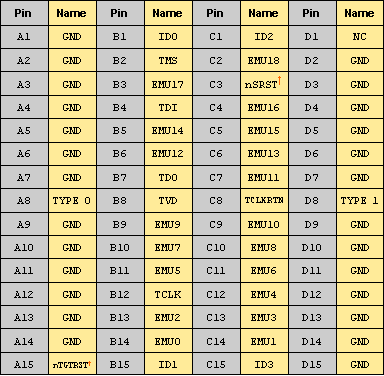

60 pin XDS560 Trace
 † signal active low
