Accessing multimedia content from everywhere is one of the growing challenge for the products and services that are being introduced starting now : from home, from work, from the street we want to see photos, play music, watch news or movies.
Even if local and portable storage of A/V data is partially an answer to this request for ubiquity, some use cases still requires live access to multimedia program: news and sports, video phone or conferencing.
Moreover, the competition around fast Internet access using xDSL or IP over cable technology is about to make old cable-TV technology an outdated application more early than expected.

From provider to customer, we are all concerned by emergence of this technology : multimedia streaming over IP network.

We will try to have a look at what is involved to build a working streaming system :

  • Protocols and Standards
  • Clocks and Synchronization

Protocols and Standards:

Research have been conducted by workgroups of the IETF (Internet Engineering Task Force) on the problem of transmitting multimedia content over IP networks early 90’s. While some olders protocols have been abandoned, a triplet of communication protocols have been setup to allow streaming of nearly any type of content to one or multiple recipients.

These protocols are :

  • RTSP : the Real-Time Streaming Protocol
  • RTP : the Real-time Transport Protocol
  • RTCP : the RTP Control Protocol

All begins with the RTSP. This protocol, plugged onto TCP, is mandated to manage the streaming session. This is what we could call the Internet Remote Control.
This is the protocol that allows the client to know about available streams at a location, get stream parameters (used codecs, bit rate, content, …) and most of all , this is the protocol that allows to PLAY, PAUSE, STOP : just what you generally expect from a remote control. Stream descriptions exchanged using RTSP are done using stream description language called SDP (session description protocol).

Although RTSP name contains " streaming ", it is not RTSP that " streams " the data to the customer.
RTP is the protocol used to transport the multimedia stream to the client.
Because multimedia is inherently real-time, and because in real-time systems after-time is no more the time, RTP is build upon UDP( ). Using IDP, RTP send a packet to the network but cannot warrant that the packet will reach its destination.

That's the reason why, RTP adds information in front of the content it encapsulates so that the recipient can check whereas a packet have been lost or have been transmitted in the wrong order. The multimedia content transported by a RTP packet is called the payload.

Some payloads format are well known and as such have been allocated a legacy (static) payload identifier. This includes audio payloads such as G.721, G.722, GSM or video payloads such as JPEG or H.261. These legacy formats doesn’t require a complex description in SDP.
Other A/V formats fall into the case of dynamic payload identifier and require a more complex description in the SDP packet.

1. TCP is one of the most common communication protocol of the IP galaxy. TCP (Transmission Control Protocol) allows session-oriented (or connection-oriented) communications. Ie this is the protocol dedicated for point to point communication where each one knows who is talking to and checking that information reach the recipient. It is more like a phone call : you know who you are talking to and you always check that the person on the other end have understood what just told to him. Main IP applications are using TCP as the base protocol (FTP, HTTP, …).

2. UDP is the other most used communication protocol but generally less known. UDP (User Datagram Protocol) is a connection-less protocol. That means that UDP doesn’t take into account a handshake protocol, it is more like a push protocol : just shouting into the tube and don’t check if there is someone’s ear at the other end. Because it doesn’t use handshake, it is a little faster to manage than TCP, but also, delivery of messages (datagram) are not warranted.

The last protocol, RTCP is used to monitor the session. It is mainly used to feed the streaming server with reception statistics from the client. The server may then decide to use these statistics (such as the numbers of lost packets, the delay from reception, …) to adapt its strategy.

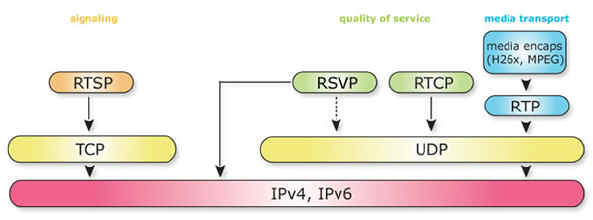

The diagram below shows an overview of the relations between protocols:



Clocks and Synchronization:

There are related the 2 main problems of streaming:

  • Insuring that the client player is playing the multimedia stream at the correct speed
  • Insuring that the different part of a multimedia stream (audio and video for instance) keeps synchronized

The answer is quite easy : all RTP packets contain a header with a timestamp. The timestamp of the 1st packet is randomly chosen or could start at 0. Then each packed is dated with an integer value that gives the clock time at which the packet should be played or rendered.

RTP streams audio and video on separate channels and because they are based on different sampling rates, different clocks reference may be used to date the audio and video packets.
For instance, ADPCM and G.72x audio payloads are dated using the sampling frequency as references clock whereas MPEG audio or video are dated using a fixed 90kHz clock reference.

So how could the player manage to keep audio and video synchronous when they are dated using different reference ?

As part of the RTCP, the RTP control protocol, the server will deliver regularly synchronization information by referring the channel clock reference to an absolute clock reference which is common for the whole system.
