H264 Off-line S/W Encoder

H.264 encoding - File preview

MPEG-4 AVC / H.264 Encoder PC Suite-The world leading AVC encoder
Benefiting from ATEME latest research techniques for video quality enhancement - patents pending, the H.264 Encoder - PC suite is the choice solution for:
MPEG-4 AVC production
For Video-on-demand asset creation, production for delivery to TVs and mobiles
Video archiving

With MPEG-2 content re-encoding
for storage cost reduction

MPEG-2 >>> H.264

Interoperability testing

Test file generation with fine tuning of all parameters (tools, resolution, profile, bitrate), for Set Top Box manufacturers, decoder integrators and manufacturers.

Strictly ISO-standard compliant

News gathering - option
Save time! with simultaneous transmission while encoding over low bandwidth
Video compression
  • MPEG-4 AVC / H.264 (ISO/IEC 14496-10) up to Level 5.1
  • Main, Baseline and High Profiles
  • I, P, B slices
  • Configurable GOP
  • Scene change detection with I Frame insertion
  • Multi B-frame support
  • Reference frames: up to 16
  • Interlaced or progressive encoding,
    with MBAFF, PAFF
  • Macro block/sub block partitioning:
    16x16, 16x8, 8x16, 8x8, 4x4
  • All intra prediction modes
  • 4x4 integer transform
  • Pixel, ½ and ¼ pixel motion estimation
  • In-loop deblocking filter
  • DCT 8x8 (High Profile)
  • Accurate CBR/ VBR/ dual pass
  • Bitrate from 20kbps to 100 Mbps


  • Image cropping, resizing
  • De-interlacing, noise filtering
  • 3:2 pulldown (inverse telecine)
  • Frame rate subsampling

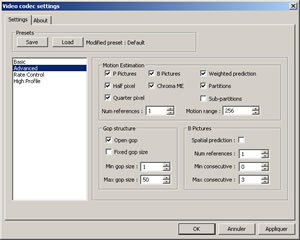

Encoding parameters fine tuning
Encoding parameters tuning


Audio compression
  • AAC-LC
  • MPEG-1 layer I / II
  • AMR
  • Stereo or 2 mono
  • Bitrate: 8 to 384 kbps per channel
  • CBR, VBR modes
File input / output
  • MP4 files (MPEG-4 ASP and AVC/H.264)
  • .H264, .YUV elementary video files
  • Any file format with installed Directshow filter
  • QCIF to Full D1 and HD (720p, 1080i, 1080p), any resolution by multiple of 8, up to 4kx2k and 4096x2304
  • MP4 MPEG-4 file
  • MPEG-2 TS file - Configurable parameters: PIDs, packet size, interbyte stuffing mode, …
  • Hinted file for streaming, compliant with ISMA streamers and players
  • Time code capture from input files
  • Simultaneous transmission over Ethernet to FTP News gathering client (option)
  • Batch encoding manager
  • Fully multithreaded
  • Full configuration of encoding parameters
  • One-click encoding with presets
  • Custom user profiles management
H.264 encoding - File preview
H.264 encoding - File preview
  • Source preview
  • Encoding real-time statistics
  • Really fast encoding, by software design
  • Dropping directory encoding server, enabling farm encoding on remote servers, with encoder and presets sharing

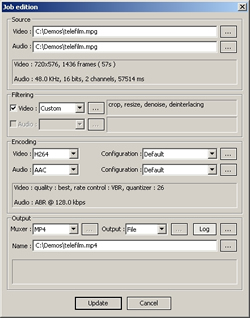

H.264 / MPEG-4 AVC encoding - Job edition
H.264 encoding - Job edition

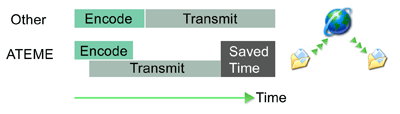

News gathering - option

Simultaneous transmission over Ehernet
to FTP News gathering client.

Download H.264 Encoder - PC Suite data-sheet (PDF version)

詳細介紹與功能請聯絡 tech@ict.com.tw
