| H264
影像壓縮 for Texas
Instruments DSPs,General Purpose Processors,PC and FPGA (VHDL
IPs) |
| |
ATEME
delivers H.264/MPEG4-AVC technologies for end-to-end streaming
solutions.
Encoders, decoders and streaming IP integrated with 3rd party
DRM has been demonstrated at IBC (September 2004, Amsterdam).
Our technology is available and already adopted by customers,
in Broadcast, Broadband and Corporate markets, in live SD main
profile encoders and in IP Set-Top Boxes for H.264 DSP
decoder.
Our
encoders/decoders strictly follow ISO/IEC 14496-10 standard,
implementing all tools for the very best video quality.
Benchs achieved by independent experts show ATEME's solutions
as the fastest and highest quality solutions.
|
|
| Encoding
technologies |
Decoding
technologies |
|
Real-Time
PC-based solution
Off-line
encoding software, with SDK. Option for
simultaneous transmission.
Option
for acquisition board with SDK for real-time
acquisition and encoding. File recording &
streaming server interfaces.
|
 |
|
|
Decoder
on DSP
Solution
for Texas Instruments' DSPs
|
|
|
|
PCI
board
Real-time
SD encoding from SDI - Kompressor board family.
For OEMs and integrators, already available in
MPEG-4 SP and ASP, and soon AVC.
|
 |
|
|
Decoder
on PC
Implementing
all Main and Baseline profiles tools (CABAC,
MBAFF, MPAFF, ASO, …)
Available as codec, ActiveX, etc…
|
|
|
|
Single-chip
H.264 real-time encoder (FPGA)
Downloadable
binary, for a complete SD encoder in a
single-chip solution
|
VHDL |
|
|
|
Complete
VHDL core H.264 encoder
Real-time
SD full encoder, available in VHDL source code
for customization.
|
VHDL |
|
|
|
VDL
IPs for Hardware acceleration
VHDL
IPs for real-time SD and HD
encoding
- Bitstream
encoding (CABAC and CAVLC),
- Deblocking
filter,
- Motion
estimation
|
VHDL |
|
|
|
|
|
ATEME
is a member of the MPEG Industry Forum and
participates in H.264 interoperability tests. |
H.264
technology overview
H.264
/ MPEG-4 Advanced Video Coding / MPEG-4 ISO 14496 part
10 boasts high quality for low bitrate and overcomes the
bandwidth limitation while addressing the needs for high
quality video.
This new compression standard features enhanced
compression performance while providing a video
representation which addresses “conversational”
(video telephony) and “non-conversational” (storage,
broadcast or streaming).
This
standard is declined in 4 profiles:
- Baseline
- Main
- Extended
- High
- coming soon
The
main changes compared to MPEG-4 (part 2) are:
- Integer
transform
- Context
Adaptive Coding (CAVLC, CABAC)
- Enhancement
of every steps
- More
processing power for an enhanced quality

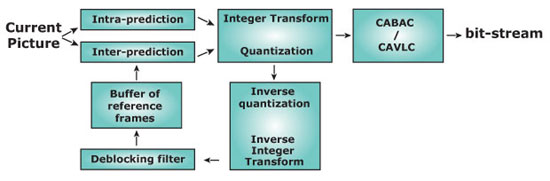

Encoding
principle is the following:
-
Multiple
reference frames
are used for motion
compensation step.
-
Integer
transform
prevents mismatch between encoder
and decoder.
-
Quantization
is done with Non constant step increment.
-
Context
modeling (Context adaptive coding)
provides conditional probability of the coding
words.
-
Deblocking
filter
allows artifacts removal on
reference frames.
|
Features
|
H.264
|
|
Main
Profile
|
Baseline
Profile
|
I-,
P-Frames
|
x
|
x
|
B-Frames
|
x
|
|
CAVLC
|
x
|
x
|
CABAC
|
x
|
|
Deblocking
loop filter
|
x
|
x
|
Interlace
support
|
x
|
|
Arbitrary
slice ordering
|
|
x
|
Redundant
slices
|
|
x
|
ATEME
H.264 video compression libraries are available in Main
Profile and Baseline Profile.
Available
products datasheets
