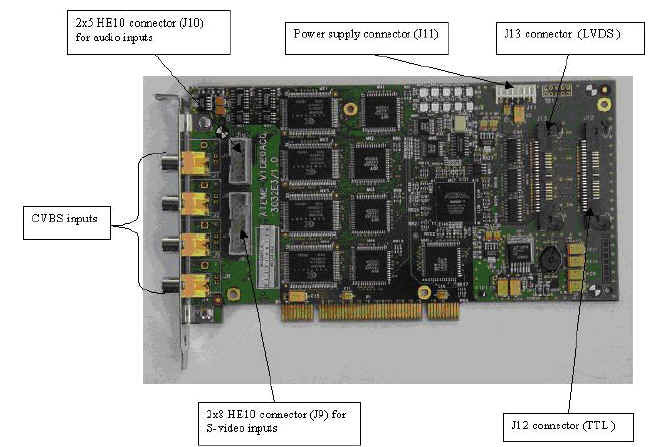

AV4IN for IEKC64x is a board
with 4 audio/video inputs and which is used to expand the
acquisition capabilities of IEKC64x, providing:
4 composite (CVBS) or s-video
(Y/C) inputs:
•YUV422
•PAL or NTSC
•FULL, CIF or 2CIF(720x240 in NTSC and 720x288 in PAL)
4 mono (or 2 stereo) analog
audio inputs sampled at 48 kHz
AV4IN must be seen as an
extension of IEKC64x. It is a PCI board but its PCI link is
intended only for providing power supply from a host computer.
An on-board power supply connector is also available, allowing
using the board in a stand-alone mode.
AV4IN is connected to IEKC64x
using DVIO daughter board (also provided in this package).
Everything required, except IEKC64x, is
included in the package.
Hardware:
- AV4IN PCI board
- DVIO daughter board
- 2 ribbon cables for connecting AV4IN to
DVIO
- Extension module for Y/C video and audio
acquisition
- Stand alone power flat cable (optional)
Software:
- AV4IN library
- sample programs to illustrate how to use
the board
|
