TFT LCD Module影像擴充子卡

The TFT LCD Video Module is a video in/out hardware module, which provides developers with an easy-to-use and a cost-effective way to evaluate and develop video processing algorithm based on TMS320C6000TM DSP. It acquires NTSC/PAL analog video signal and displays digital video data on TFT LCD display. This product is a plug-in for the Texas Instruments DSK.



       Product Contents
         1. TFT LCD Video Module
         2. CD (Manual, Example code)

          - Input: NTSC/PAL, 30/25 fps
          - Output: RGB565
          - Resolution: 320x240 16bit/pixel

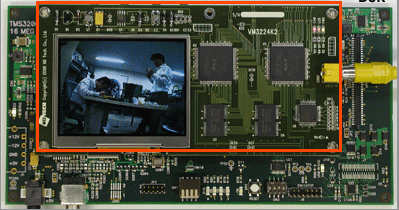

  With DSK
