TORNADO-54x are high-performance ISA-bus PC plug-in fixed-point DSP systems and universal emulators for TI TMS320 DSP.

key features:

..160MIPS 16-bit fixed-point  TMS320C54x DSPs
TORNADO compatible system architecture and modular construction
multi-page SRAM (P+D)
Shared Bus (SB) architecture
PIOX-16 and SIOX sites for AD/DA/DIO daughter-card modules and application specific I/O coprocessors
direct access from host ISA-bus I/F to SRAM, PIOX-16 and DSP on-chip HPI port
multiprocessor DSP expansion
UECMX or ECC emulation options
emulation of external TMS320 DSP
industry-standard DSP software tools
build-in device serial codes
compact size

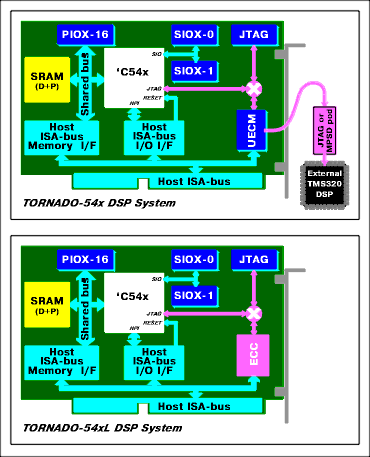

TORNADO-54x DSP Systems Architecture

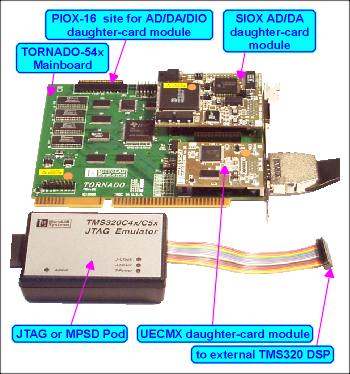

TORNADO-54x Modular Construction

applications:

vocoders/fax/modem
wireless communication
speech procesing
audio
multimedia
industrial
medical
instrumentation
education
universal emulators for TMS320 DSP

TORNADO-54x DSP Systems Summary

p/n DSP SRAM I/O Expansion Emulation options Host
PC bus		 PDFICON.GIF (224 bytes)
TORNADO-542L 'C542
40MIPS		 64Kx16 0ws (P-MEM);

64Kx16 0ws (D-MEM)		 PIOX-16

SIOX(2)		 ECC ISA pdfsmall.gif (153 bytes)
TORNADO-548
TORNADO-549
TORNADO-5402
TORNADO-5410

TORNADO-5416		 'LC548
80MIPS

'VC549
100MIPS

'VC5402
100MIPS

'VC5410
100MIPS

'VC5416
160MIPS		 2x64Kx16 1ws (P-MEM)

4x32Kx16 1ws (D-MEM)		 PIOX-16

SIOX(2)		 UECMX
+ pod		 ISA pdfsmall.gif (153 bytes)

Datasheets:

TORNADO PC plug-in DSP Systems Summary Datasheet (Rus) (Eng)
Software development tools for TORNADO/MIRAGE (Rus)
Application software tools for TORNADO (Rus)
