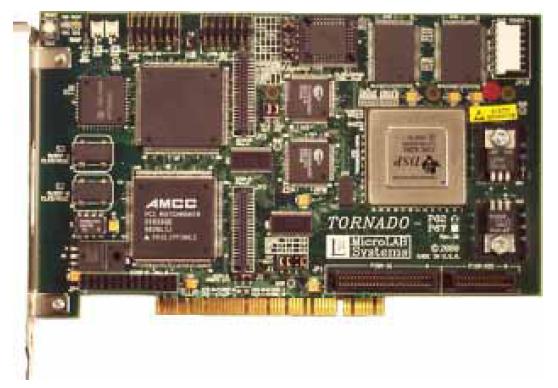

P62/P67是極高效能的DSP平台，針對real-time
DSP的靈活性模組並針對PCI-bus plug-in 和stand-alone
applications的資料的取得，P62和P67使用fixed-point TMS320C6201
(1600 MIPS) 和floating point TMS320C6701 (1000 MFLOPS)
DSP,它提供on-chip平行計算的理想性 |
|
feature |
- Ultra-high
performance compatible DSPs:
- TORNADO-P62: TMS320C6201 (32 bits, fixed
point,1600 MIPS)
- TORNADO-P67: TMS320C6701 (32 bits, floating point,
1000 MFLOPS)
- Up to 512Kx32
synchronous static RAM (SBSRAM)
- 4Mx32 synchronous
dynamic RAM (SDRAM)
- Up to 1Mx8
FLASH/EPROM for stand-alone operation
- High-performance
host PCI-bus interface for multichannel PCI-to-DSP
and DSP-to-PCI communication:
- 32Kx32 or 64Kx32 dual-port RAM (DPRAM) between PCI-bus
and DSP for shared data access
- DSP-to-PCI access via bi-directional FIFO with
PCIbus mastering
- Access from PCI-bus to all DSP memory and I/O
areas via DSP on-chip HPI port
- Multi-channel bidirectional mailboxes and
interrupts
- Software
configurable external DSP interrupts
- Stand-alone
operation with external power
- Watch-dog timer and
reset monitor
- Modular construction
with PIOX/SIOX daughter-card modules
- Half-size PCI card
|
|
|
|
|
|
