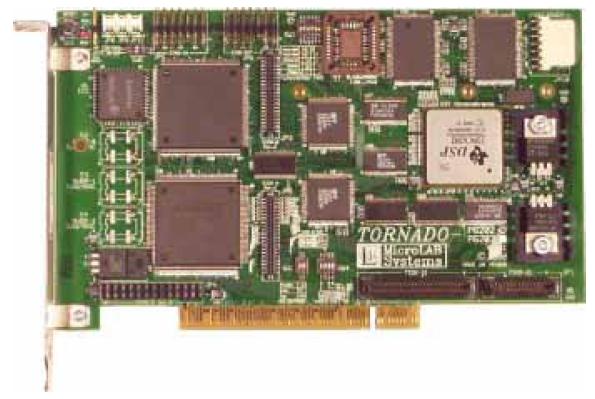

P620X Systems for PCI bus |
|
 |
|
P6202/P6203是極高效能的DSP平台，針對real-time
DSP的靈活性模組並針對PCI-bus plug-in 和stand-alone
applications的資料的取得，P6202和P6703使用fixed-point TMS320C6202
(2000 MIPS) 和TMS320C6203 (2400 MFLOPS) DSP,它提供on-chip平行計算的理想性並含有3
Mbit和7 Mbit on-chip RAM. |
|
feature |
- Ultra-high
performance 32-bit fixed-point DSPs: - TMS320C6202
(2000 MIPS, 3 Mbit on-chip RAM) - TMS320C6203 (2400
MIPS, 7 Mbit on-chip RAM)
- Up to 512Kx32
synchronous static RAM (SBSRAM)
- Up to 8Mx32
synchronous dynamic RAM (SDRAM)
- Up to 1Mx8
FLASH/EPROM for stand-alone operation
- High-performance
host PCI-bus interface for multichannel PCI-to-DSP
and DSP-to-PCI communication: - 32Kx32 or 64Kx32
dual-port RAM (DPRAM) between PCI-bus and DSP for
shared data access - DSP-to-PCI access via
bi-directional FIFO with PCIbus mastering - Access
from PCI-bus to all DSP memory and I/O areas via DSP
on-chip HPI port - Multi-channel bi-directional
mailboxes and interrupts
- Software
configurable multi-source external DSP interrupts
- Stand-alone
operation with external power
- Watch-dog timer and
reset monitor
- Modular construction
with daughter-card modules
- Half-size PCI card
|
|
|
|
|
|
