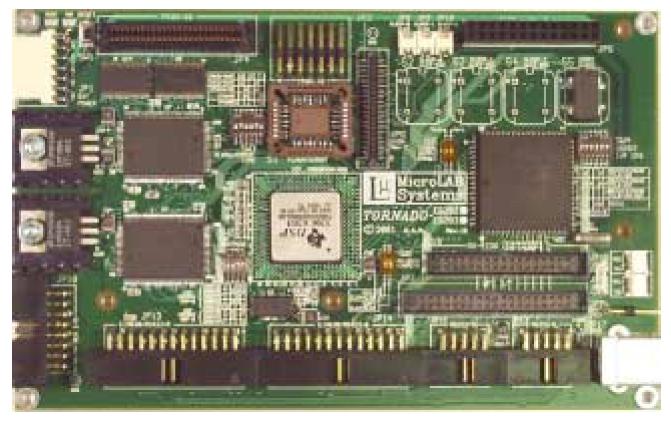

E6202/E6203是極高效能的DSP平台，針對real-time 資料取得和DSP的工業標準3U form-factor，它提供靈活性的模組建造和多樣的“off-the-shelf” AD/DA/DIO和 I/O coprocessor  expansion daughter card 模組，使的

E620x為嵌入式通訊、電話、多媒體、數位廣播和許多應用的理想的選擇

feature

• ultra-high performance 32-bit fixed-point compatible DSP: - TMS320C6202 (2000 MIPS, 3 Mbit on-chip RAM) - TMS320C6203 (2400 MIPS, 7 Mbit on-chip RAM)

• Up to 512Kx32 synchronous static RAM (SBSRAM)

• Up to 8Mx32 synchronous DRAM (SDRAM)

• Up to 1Mx8 FLASH/EPROM

• Dual-channel 10 Mbps universal receiver/transmitter (USART) with synchronous (HDLC/X.25, SDLC, MONO, BISYNC) and asynchronous protocols and 115kBaud RS232 and 10Mbps RS422 external interfaces

• 12 Mbit/s USB device interface

• 8-bit digital I/O

• Host access to DSP on-chip HPI port

• Watch-dog timer and reset monitor

• Modular design with daughter-card modules (DCM)

• Industry standard 3U form-factor
