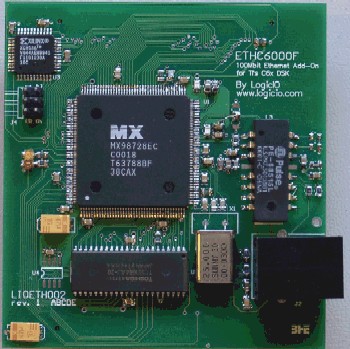

低單價C6711DSK TCP/IP發展模組

Key features:

  • Connects Your Texas Instruments C6711 DSK to 10/100MBit Ethernet

    • Supports the  C6711 DSK.

    • Part of Texas Instruments Network Development Kit

    • Comes with complete Schematic, Bill Of Material file and low level driver code (source code)

  • High performance MAC Controller giving the following key features:

    • Fully compliant with the IEEE 802.3u spec.

    • 128 KByte of onboard packet memory, freely partitionable between TX and RX packets

    • Full support for DMA and Interrupts

    • Programmable bus integrity check timer and interrupt assertion scheme

    • Separated TX and RX FIFOs to support full duplex mode, independent TX and RX channel

    • 1.6KByte TX FIFO to support maximum network throughput in full duplex mode

    • NWAY auto negotiation function to automatically setup network speed and protocol, simply plug the cable in and the board will connect itself with the best protocol available.

    • Supports 64 bits hash table for multicast addressing and broadcast control

    • EEPROM configuration

    • Send mail to info@ict.com.tw for detailed data.
