C6416 Test & Evaluation Board
TMDX3260C6416

Details
Tool Type Development Boards/EVMs
Release Date 12 Nov 2001
Supplier Texas Instruments

DESCRIPTION

As part of the industry's highest performance line of DSPs, the TMS320C6416 gives designers an innovative new way of addressing the high performance and low power demands of next generation wireless infrastructure. Now, the TMS320C6416 test and evaluation board (TEB) allows developers to easily and immediately evaluate the device for their applications. The board, which includes a self-contained TMS320C6416-based printed circuit board, power supply and documentation, requires an XDS510 emulator controller for a PC or an XDS510WS for a UNIX workstation. By coupling the TMS320C6416 TEB with the emulator and TI's Code Composer Studio™ Integrated Development Environment (IDE), designers have a comprehensive and simplified way of speeding products to market.

FEATURES
Features of the TMS320C6416 TEB include:

  • 500-MHz C6416 DSP capable of executing 4000 millions of instructions per second (MIPS)
  • Two External Memory Interfaces (EMIF)
  • 16M bytes of 133 MHz synchronous DRAM (SDRAM)\
  • 16-bit stereo codec
  • Emulation connectors
  • Memory-mapped switches
  • LEDs
  • Expansion memory and peripheral connectors for daughtercard support
  • Onboard switching voltage regulators

CONTENTS

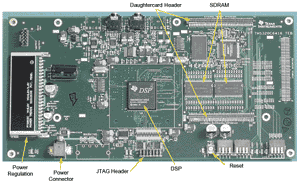

Hardware Components
  • TMDX320C6416 DSP
  • Default set at 500 MHz
  • Board dimensions: 4.5 in. x 9.0 in.
  • Daughtercard header:
    - gives access to EMIF A
    - 2 timers
    - GPIO
    - 2 McBSPs
  • Specific components:
    - CPLD - Altera CPLD EMP3128ATC100
    - Codec - Burr-Brown PCM3002E
    - Flash - AMDAML9LV400BT, 512B x 8, configured for ROM boot operation
    - SDRAM - two Micron 48LC2M32B2TG-6, 2M x 32
  • 14-pin JTAG header - for emulation
  • Universal power supply block and power cord - +5V (5A) output
  • On-board power regulation - LDO regulators for 3.3V and 1.2V (variable regulation). Default at 1.37V

COMPATIBLE PRODUCTS
Required Tools (not included)
  • C6000 Code Composer Studio Integrated Development Environment (IDE) v2.0 or later
  • XDS510 based emulator, with support for C6416 devices; requires PC ISA bus and JTAG cable
  • C6416 Software Support Update, available as download from TI
Related Documentation
  • How to Begin Development Today with the TMS320C6414 and the TMS320C6415 DSPs (SPRA718)
  • TMS320C64x Technical Overview (SPRU395)
  • TMS320C6416 Fixed-Point Digital Signal Processor datasheet (SPRS164)
  • TMS320C6000 Peripherals Reference Guide (SPRU190)

  • TMS320 Cross-Platform Daughtercard Specification (SPRA711)
