DspIceLVx = (1 target only) : 1 target < xICE < 17 targets

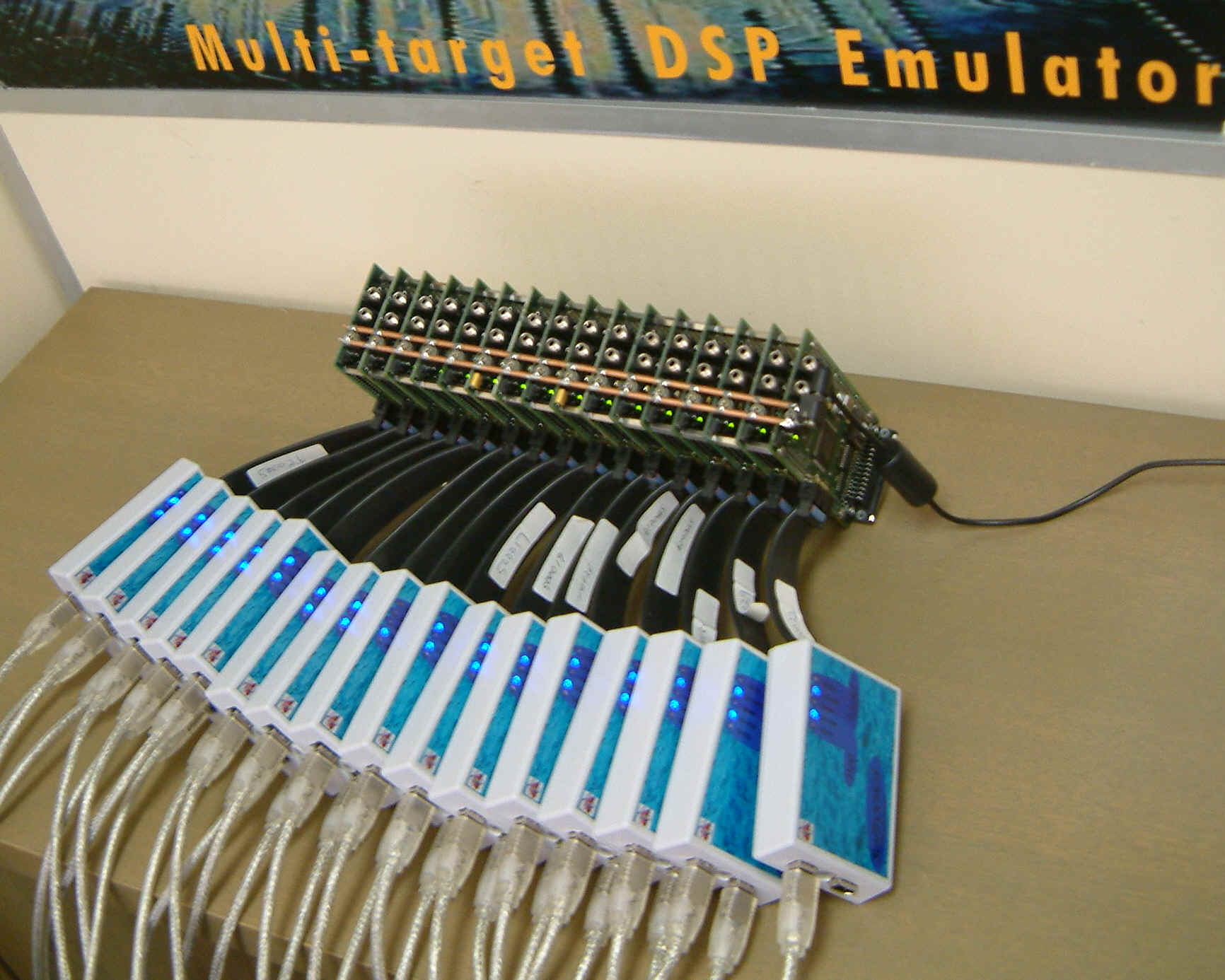

 xICE = multiprocessor emulator / multi-target emulator

• Global run/stop/breakpoint of parallel-processing DSPs

• High-level language debugging support

• Software breakpoint(as per XDS510) on all program & data

• Single-step execution

• Loading/inspecting/modification of all registers and memory

• Benchmarking of execution time of clock cycles

• Rugged compact design

• PCI bus PnP support

• Code Composer Studio, RTDX, DspBios etc., support

• TI DSPs and ARM support

• Variable TCLK from 20Mhz to 5MHz

• 1.0V to 5.0V processors (auto-detect )

• Supports 1 processor scan chain as per XDS510

• Supports multiple processor emulation in a "daisy chain"

• Supports emulation on up to 16 separate scan chains with multiple processors in a "daisy chain"

• All from one PCI slot

Windows & NT

TI DSPs & ARM

TI Code Composer Studio

JTAG PODs easily attached.

1 to 16 PODS can be attached per PCI card

1, 2 or 5 Meters between PODS

LVJTAG 1V->5V
